Linha de transformação agrícola de corte VegKing

para ervas aromáticaspara hortaliças

Overview

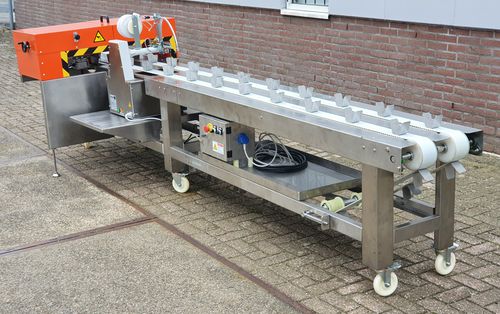

VegKing is an affordable processing line designed for bundling, labelling and trimming vegetables and herbs. It is developed by VegHands to ensure product freshness and to optimise the process from harvest to packaging.

Bundling & binder (Cyklop AXRO)
Bundling with the Cyklop AXRO elastic binder places an elastic band automatically around the bundle. Several types and colours of elastic are available and the tension of the elastic around the bundle is adjustable. The elastic is wound from a large roll, brought around the product, knotted and then automatically cut off. Optionally, bundles can be labelled and/or cut.

Key features

• VegHands own design: the VegKing is designed and built under VegHands direction.
• Flexible product handling: two narrow conveyor belts can be moved and product holders can be changed to handle many product types with one machine.
• Adjustable speed and timing: conveyor belt speed is infinitely adjustable and the timing of the Cyklop AXRO is adjustable.
• Hygienic construction: frame fully stainless steel and conveyor belts are food-grade.
• Production capacity: standard version (1900 mm) suitable for 2 people feeding, approx. 2,500 bundles/hour; longer version available up to approx. 4,000 bundles/hour.
• Automatic single-band operation: when bundling with the Cyklop binder, one rubber band is automatically placed, knotted and cut.

Suitable products

• Herbs: parsley, celery, rosemary, thyme, sage, mint, bouquet garni
• Vegetables: carrots, leeks, spring onions, asparagus, long beans, rhubarb
• Other: soup parcels and similar elongated/hand-tied produce

Options

• Automatic labelling system
• Saw blade for shortening bundles (trimming saw)
• Extra Cyklop AXRO binder for 2 bindings

Application & benefits
Bundling and labelling improve shelf life, identification and handling. VegKing is positioned as a cost-effective, reliable line to save on costs while delivering quality.

Caractéristiques / spécifications techniques

• Commercial name / model: VegKing
• Manufacturer / brand: VegHands
• Binder: Cyklop AXRO elastic binder (automatic elastic feed, knotting and cut)
• Binder adjustments: elastic tension adjustable; multiple elastic types and colours supported
• Construction: stainless steel frame; food-grade conveyor belts
• Conveyor: two narrow belts, positionable; speed infinitely adjustable
• Timing: Cyklop AXRO timing adjustable
• Standard machine length: 1900 mm (standard version for 2 operators)
• Production capacity (indicative): standard ~2,500 bundles/hour; extended length version up to ~4,000 bundles/hour
• Options: automatic labelling system; trimming saw (saw blade); additional AXRO binder for double bindings
