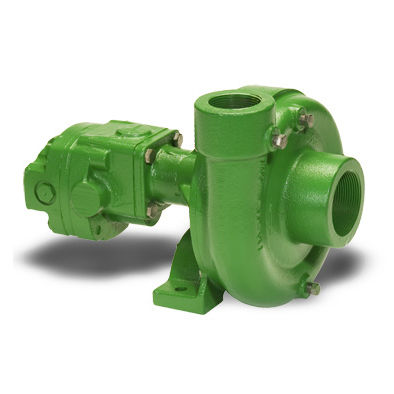

Irrigation pump FMC-200-HYD-210, FMC-200-HYD-304, FMC-200-HYD-310hydraulically-operatedcentrifugal
Add to favorites
Compare this product
Characteristics
- Application
- irrigation
- Other characteristics
- hydraulically-operated, centrifugal
- Flow
34.1 l/min, 37.9 l/min, 41.6 l/min
(9.00827 us gal/min, 10.01212 us gal/min, 10.98956 us gal/min)- Pressure
Max.: 120 psi
Min.: 0 psi
Description
Ideal for spraying, large tank agitation, liquid transfer, and spray - transfer combinations
The 210 motor requires 10 GPM (37.9 LPM) maximum hydraulic fluid input.
Recommended for:
Pressure Compensating Closed Center Systems
Load Sensing Closed Center Systems
Open Center Systems up to 17 GPM (64.4 LPM) using internal needle valve bypass
The 304 motor requires 11 GPM (41.6 LPM) maximum hydraulic fluid input.
Recommended for:
Pressure Compensating Closed Center Systems
Load Sensing Closed Center Systems
Open Center Systems up to 20 GPM (75.7 LPM) using internal needle valve bypass
The 310 motor requires 16 GPM (60.6 LPM) maximum hydraulic fluid input.
Recommended for:
Large Open Center Systems up to 24 GPM (90.9 LPM) using internal needle valve bypass.
