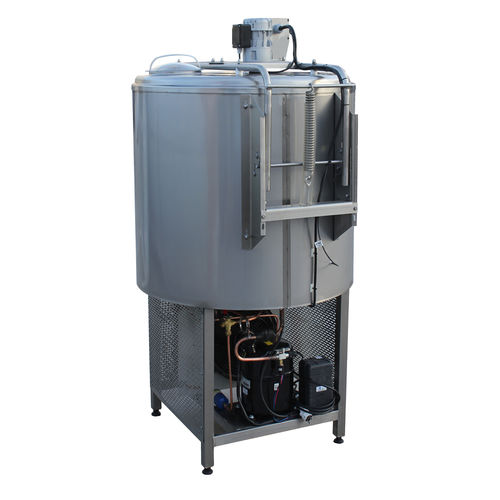

Milk tank PHS

verticalstainless steelwith cooling system

- AISI 304 quality stainless steel - 1st wall base is 2 mm and it also has 0,8 mm Ep type laser welded cooler evaporator surface that is coupled to wall. - 1st wall body 1,5 mm - Isolated body 1 mm - Cooler unit is mounted from the bottom side of the tank body. - There are 1 25 W 21 d/d redactor and stainless steel mixer blade on redactor. - Isolation range has 50 mm thickness, isolated with water based, non-HCFC high density polyurethane foam material. - Product output has DN50 stainless, cleanable butterfly valve. - There is also spring cover. - There is Ø 200 mm covered product entry on the cover. - There is manual measuring scale with ‰ 3-4 sensitivity rate. - There are adjustable bolted stands under the tank. - Design that allow zero liquid to remain in the rank during discharge. - Welded sections are welded with 1st class Argon TIG welding and has 1st class smooth polishing.
