Plateforme de support PLATFORM

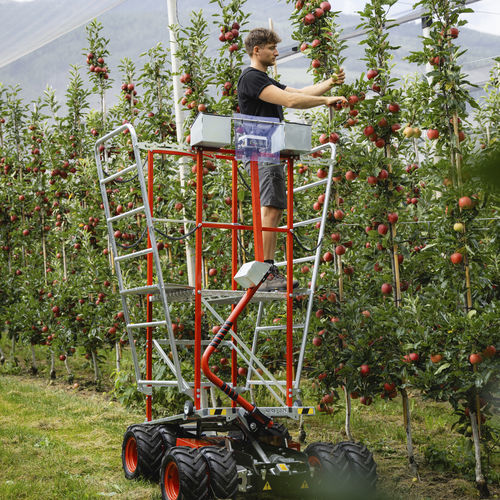

Optional Platform Attachment
The platform attachment was developed to make the base machine usable even outside the harvest period. Many growers prefer not to purchase a separate working platform when a stable and powerful machine is already available that, in certain cases, can be just as suitable for the same tasks.

Easy Mounting
The platform is attached to the machine with just a few bolts. There are no folding parts, no hydraulics, and no sliding mechanisms – keeping the construction simple, robust, and low-maintenance. Once the process is familiar, mounting or removing the platform usually takes only a few minutes. A short assembly video is available.

Versatile in Use
The platform attachment can be used for maintenance tasks such as pruning, tying, thinning, or – under suitable conditions – for opening hail net clips. It does not replace a large lifting platform but can cover several types of work where a more compact and lighter solution can be advantageous. Thanks to the reinforced frame, and in rows that are not too wide, two people can work simultaneously on opposite sides of the row.

Working Height and Customization
Depending on the model, the standing height of the platform ranges between 1.28 m and 1.48 m. This allows safe work in tree areas from approximately 1.50 m to 3.50 m. The working width can also be adapted to the row structure, usually ranging between 2.20 m and 3.50 m.

Available Versions and Prices

• Platform Standard (1 person) — €2,700.00
• Platform Wide (2 people) — €3,500.00

Caractéristiques / spécifications techniques

• Mounting: attached with a few bolts; no folding parts, no hydraulics, no sliding mechanisms (simple, robust, low-maintenance)
• Standing height: 1.28 m – 1.48 m
• Working height: approx. 1.50 m – 3.50 m
• Working width: typically 2.20 m – 3.50 m (adaptable to row structure)
• Reinforced frame; allows two people to work simultaneously on opposite sides in suitably narrow rows
• Intended uses: maintenance tasks (pruning, tying, thinning), and under suitable conditions opening hail net clips
