Carrello raccolta per l'orticoltura BERGLADY

per fruttetoper potaturasemovente

Multifunctional use beyond harvest
Our founder Michael never liked machines that are used only for a few weeks during harvest and remain idle for the rest of the year. The Berglady was developed as an evolution of the Lady to use the same base machine also outside the harvest period. Thanks to its reinforced construction and predefined mounting points for optional attachments, the Berglady not only expands its harvesting capabilities but also enables various maintenance tasks to be performed throughout the year.

More power and stability
The Berglady was built with a stronger structure to safely carry heavier loads during work while maintaining full stability. With more powerful motors, optional reduction gearboxes, and a 48V system, it can handle loads of up to around 600 kg. The longer wheelbase and wider track provide a solid base — both when two people are working on the pedestals during harvest with a full fruit bin and when pruning trees in winter on uneven or slippery ground. Steep slopes of up to around 40% are possible, and the system recovers braking energy on descents to extend battery life in hilly orchards.

Platform and pedestals when needed
Instead of building a separate, larger machine, the Berglady was designed so that a platform or harvesting pedestals can be mounted when required. This allows the same base machine to take on different tasks throughout the season. The platform is mainly used for maintenance work such as pruning in winter, tying in spring, thinning during the growing phase, or working on hail nets. The harvesting pedestals are primarily used to enable picking in mid- and higher-tree areas.

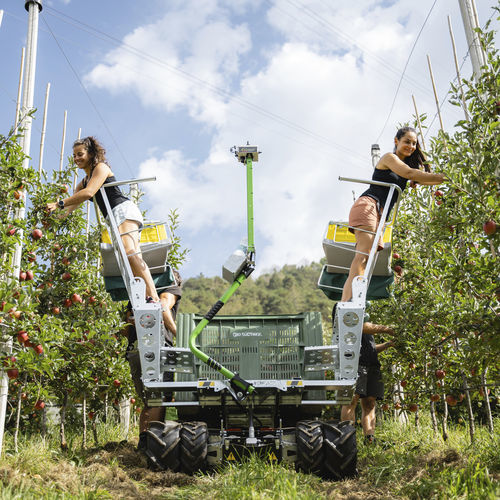

Reaching higher picking zones
The harvesting versatility of the Berglady can be significantly increased by attaching harvesting pedestals. Depending on the model and the slope, heights between approximately 2.30 m and 3.50 m can be reached. The pedestals can also be adjusted to the respective row width, which can vary between 2.20 m and 3.50 m depending on the planting system.

Options and configurable add-ons

• Platform Standard (1 person) — Row width: 2.30–2.70 m — Price shown on site: €2.700,00
• Platform Wide (2 people) — Row width: 2.70–3.50 m — Price shown on site: €3.500,00
• Harvesting Pedestals – Medium Area — Tree height: 1.50–2.70 m — Price shown on site: €1.700,00
• Harvesting Pedestals – Higher Area — Tree height: 2.20–3.50 m — Price shown on site: €1.950,00
• Additional Battery Capacity — From 1.56–5.04 kWh — Price shown on site: €800,00
• Special Wheels — Soil protection vs. traction — Price shown on site: €400,00
• Vineyard Seat — For defoliation, pruning, etc. — Price shown on site: €190,00

Caractéristiques / spécifications techniques

• Engines: 2 DC motors, rated power 0.85 kW
• Gearboxes: Bevel spur gear
• Brakes: Electromagnetic
• Steering: Tank steering via joystick
• Control system: Forward and reverse travel via joystick
• Batteries: Lithium batteries, weight 7–20 kg (standard and optional higher capacities available)
• Charger: 5–30 A electronically regulated (standard)
• Driving speed: Stepless from 0 – max. 4 km/h
• Climbing ability: Up to 20% upwards without slope compensation; up to 40% with maximum slope levelling; max. 15% side slope
• Load capability (summary): Text states handling loads up to around 600 kg; datasheet details: crate transport up to 400 kg and on platform max. 200 kg (including persons)
• Unladen weight: Datasheet: approx. 250 kg + 75/90 kg platform attachment (depending on model)
• Tires: 16" × 6.50 × 8 tyres inside (tractor profile outside optional); optional 16" × 7.50 × 8 tyres (garden profile)
• Total length: 1.55 / 1.70 m (depending on version)
• Total width: 0.90 / 1.40 m (depending on version)
• Working platform: Length 0.90 m; width 0.90 / 1.20 m (depending on version); unfolded: 1.80 / 2.20 m (depending on version); working height approx. 1.30 m
