ISOBUS electronic control unit Neural-Box®

for agricultural vehiclesprogrammableIP67

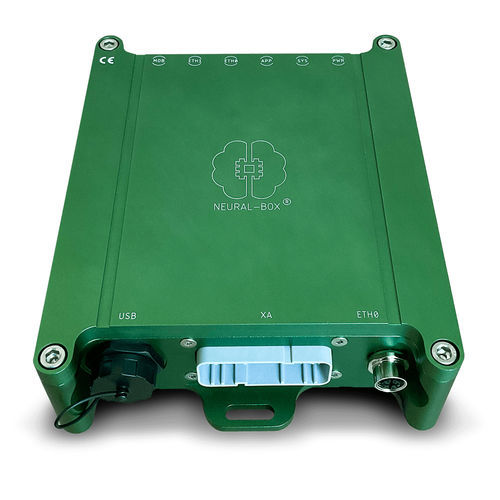

All-in-one Edge Computing Device with AI acceleration based on the NVIDIA Jetson platform, scalable in three performance levels. Robust aluminium housing in IP67 for direct use on machines in harsh environments, connection via 30-pole cable harness connectors. Communicative through numerous interfaces, both wired and wireless. The operating system used is the Linux distribution Ubuntu, prepared by NVIDIA for AI acceleration. CODESYS 3.5, including web visualisation and ISOBUS, is implemented as the runtime system for PLC controls, into which real-time AI applications can also be easily embedded. For efficient data management, an Azure Edge database is prepared that can be automatically synchronised with a Cloud database. Our Edge Computing devices can be tracked, configured and applications updated via a web frontend. Specifications Processor systems: - •NVIDIA Jetson nano (Quad-Core CPU / 128-Core GPU) or •NVIDIA Jetson Xavier NX (Six-Core CPU / 384-Core GPU / 48 Tensor-Cores) or •NVIDIA Jetson Orin NX (Octo-Core CPU / 1024-Core GPU / 32 Tensor-Cores) Memory: - •RAM 4 / 8 / 16 GB •eMMC 16 GB (nano + Xavier) •SSD 2 TB (optional for nano + Xavier) •NVRAM 64kB •microSD Interfaces: - •1 x Gigabit Ethernet 1000/100 BASE TX (M12, x-coded) •1 x Ethernet / EtherCAT 100BASE, switchable TX / T1 (UTP / SPE) •1 x USB 3.2, 2x CAN, 2 x RS232, 1 x Lowside-Switch
