Diesel generator set UniPower ESS-AC-125/261-L

gasweldingagricultural

Agrivoltaic+battery energy storage systems integrate solar generation, battery storage, and agricultural production to maximize land value, enhance energy independence, and support sustainable farming.

Zero‑Carbon Farm: Save up to 60% on your electricity bill

• Solar + battery energy storage system = your own power plant on the farm
• Dual land utilization
• Clean energy source
• Significantly lower electricity costs
• Expand grid capacity (no more overloaded transformers)
• Increased farm revenue

Product Overview

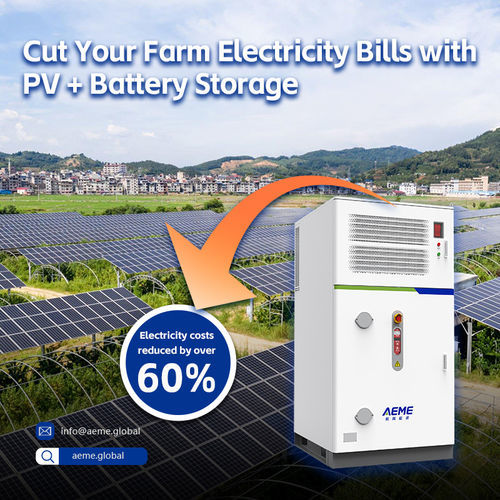

• AEME's UniPower C&I Liquid-Cooled BESS is a comprehensive all-in-one solution delivering high efficiency, safety, and ultra-quiet operation. Equipped with LFP batteries, the system integrates BMS, PCS, EMS and cloud-based management. It features fire suppression, remote shutdown and noise control, while offering flexible installation with a compact footprint, making it ideal for commercial and industrial applications.

Features

• Compact Footprint — Flexible installation options for space-efficient deployment.
• Flexible Installation — All-in-one design supports side-by-side and back-to-back installation.
• High Efficiency — Maximum system efficiency >88% with rigorous thermal insulation and an efficient PCS for improved overall performance.
• Enhanced Safety — BMS and PCS monitoring, emergency stop, remote shutdown, active fire suppression, water-based firefighting and explosion-proof design.
• Digital Management — 3S (BMS, PCS, EMS) + cloud for full lifecycle digital management.

Specification of Commercial and Industrial Liquid Cooling BESS
Battery Type: Lithium Iron Phosphate (LFP)
Cycle Life: ≥6000 cycles@80%SOH (95% DOD charge/discharge, 25±2℃)
Rated Energy: 261.25 kWh (0.5P, 25±2℃)
Nominal Voltage: 832 V
Voltage Range: 728–936 V
Cell Type: LFP 3.2 V / 314 Ah
AC Side Rated Power: 125 kW
Rated Frequency: 50/60 Hz
Harmonic Current: Rated AC Voltage: 400 V
Isolation Method: Transformerless
Wiring Method: 3P+N+PE
Maximum System Efficiency: >88%
Noise Level: 75 dB
Protection Level: IP55
Operating Temperature: -30~55 ℃ (derated 45℃)
Operating Humidity: 5%-95% (non-condensing)
Operating Altitude: 4000 m (derated above 2000 m)
Early Detection: Four-in-one detector (smoke, temperature, CO, VOC)
Cooling System: Intelligent liquid cooling (Battery) / Air cooling (PCS)
Gaseous Fire Suppression: FK-5-1-12 + Fire hydrant connection
System Dimensions (W × H × D): 1200 × 2350 × 1400 mm
Weight: 2600 kg
Communication Interfaces: CAN, RS485, Ethernet, 4G
Communication Protocols: CAN, Modbus RTU, Modbus TCP, MQTT
