Agricultural generator set SyncPower C&I BESS

Agrivoltaic+battery energy storage systems integrate solar generation, battery storage, and agricultural production to maximize land value, enhance energy independence, and support sustainable farming.

Zero‑Carbon Farm: Save up to 60% on your electricity bill

• Solar + battery energy storage system = your own power plant on the farm
• Dual land utilization
• Clean energy source
• Significantly lower electricity costs
• Expand grid capacity (no more overloaded transformers)
• Increased farm revenue

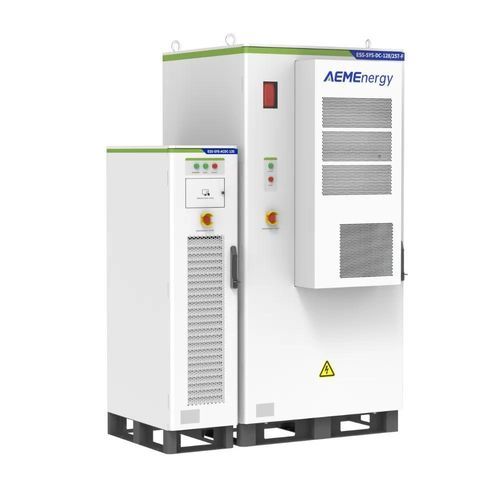

Product Overview
Designed with a modular architecture to meet international market requirements, the SyncPower C&I BESS integrates LFP battery cabinets with high-efficiency power conversion systems. The C&I battery system uses high-capacity LFP cells, an advanced BMS, intelligent thermal management and comprehensive safety measures to provide reliable energy for commercial, industrial and renewable storage applications. The PCS cabinet offers high conversion efficiency and supports multi-unit parallel operation; a single PCS can be connected to multiple battery cabinets for scalable deployment.

Key Features

• Flexible installation: Integrated charge/discharge design enabling shoulder-to-shoulder cabinet arrangement.
• Advanced protection: Intelligent protection and monitoring for operational safety.
• Battery chemistry: Safe LiFePO4 cathode material.
• High energy density: Compact footprint to reduce site space requirements.

Specification of Energy Storage Battery Cabinet
Product models: ESS-DC-128/257-A | ESS-DC-120/241-A | ESS-DC-112/225-A | ESS-DC-104/208-A | ESS-DC-130/261-L
Cell type: LFP 3.2 V / 314 Ah
Cycle life: ≥6000 cycles @80% SOH (95% DoD, 25±2°C)
System configurations: 1P256S | 1P240S | 1P224S | 1P208S | 1P260S
Nominal energy (0.5P, 25±2°C): 257.229 kWh | 241.152 kWh | 225.075 kWh | 208.998 kWh | 261.25 kWh
Rated voltage: 819.2 V | 768 V | 716.8 V | 665.2 V | 832 V
Operating voltage range: up to 936 V depending on model
Charge/discharge rate: 0.5P (all models)
Cooling: Air conditioning (most models); liquid cooling for ESS-DC-130/261-L
Fire protection: Aerosol (most models); perfluorohexanone + water interface for ESS-DC-130/261-L
Dimensions (W×D×H): 1150×1100×2450 mm (without AC) / 1150×1325×2450 mm (with AC) (typical); 1050×1400×2200 mm (ESS-DC-130/261-L)
Weight: Noise: ≤75 dB
Ingress protection: IP55 (AC parts IPX5 where applicable)
Corrosion protection: C4 standard, C5 optional (C3 standard for some models)
Operating altitude: up to 4000 m (derating above 2000 m)

Specification of the Power Conversion System (PCS)
Product models: ESS-ACDC-135 | ESS-ACDC-125 | ESS-ACDC-74
DC parameters: DC voltage ranges and max DC currents vary by model (examples: 740–950 V @ AC440 V, max DC current up to ~226 A)
AC (grid-connected) parameters: Rated power 135 kW | 125 kW | 74 kW; rated grid voltage options include 440 V, 400 V, 380 V, 220 V; frequency 50/60 Hz
Performance: Power factor adjustable to >0.99, THDi Cooling: Air cooling for PCS modules
Dimensions (W×D×H): 500×950×1850 mm (PCS modules)
Weight: Noise: ≤75 dB
Ingress protection: IP55
Efficiency: up to 97–98% depending on model
Environmental: Operating altitude ≤4000 m (derating above 2000 m); ambient temperature -20°C to +55°C (derating above 45°C); humidity 5–95% non-condensing
Communication: RS485, CAN, Ethernet; protocols Modbus RTU, CAN 2.0, Modbus TCP
Standards: IEC 62477-1, IEC 61000-6-2/4, IEC 60529, RoHS

Technical specifications

• Brand / Product line: SyncPower C&I BESS
• Battery cell type: LFP 3.2 V / 314 Ah
• Cycle life: ≥6000 cycles @80% SOH (95% DoD, 25±2°C)
• Available battery cabinet models: ESS-DC-128/257-A; ESS-DC-120/241-A; ESS-DC-112/225-A; ESS-DC-104/208-A; ESS-DC-130/261-L
• Nominal energy range (per model): 208.998 kWh – 261.25 kWh (0.5P, 25±2°C)
• Rated voltage range (per model): 665.2 V – 832 V; operating voltage ranges up to 936 V
• Charge/discharge rate: 0.5P
• Battery cooling: Air conditioning or liquid cooling (model dependent)
• Battery fire protection: Aerosol or perfluorohexanone + water interface (model dependent)
• Battery dimensions (typical): 1150×1100×2450 mm (without AC) / 1150×1325×2450 mm (with AC); alternate 1050×1400×2200 mm
• Battery weight: from
• Battery ingress protection: IP55 (AC parts IPX5 where applicable)
• PCS models: ESS-ACDC-135; ESS-ACDC-125; ESS-ACDC-74
• PCS rated power: 135 kW, 125 kW, 74 kW
• PCS DC voltage ranges and max DC currents: model dependent, max DC current up to ~226 A
• PCS max efficiency: up to 98% (model dependent)
• PCS dimensions: 500×950×1850 mm; weight
• PCS cooling: Air cooling; ingress protection IP55
• Communications: RS485, CAN, Ethernet; protocols Modbus RTU, CAN 2.0, Modbus TCP
• Standards compliance: IEC 62477-1, IEC 61000-6-2/4, IEC 60529, RoHS
• Operating altitude: up to 4000 m (derating above 2000 m)
• Operating ambient temperature: -20°C to +55°C (derating above 45°C)
