Fan for livestock buildings Cyclone Plus

recirculationfor air circulationdestratifier

Product overview

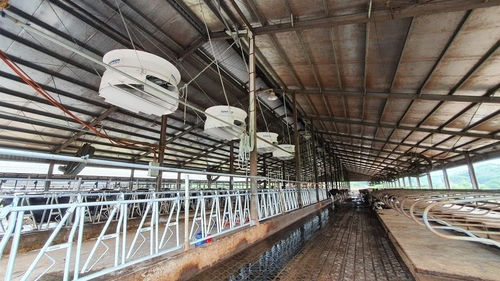

The Cyclone Plus is a heavy-duty recirculation fan designed for livestock ventilation. It uses adjustable airfoil deflectors to direct high-velocity airflow precisely over and under animals. One unit can replace up to eight 36-inch basket fans while consuming approximately half the power. The fan operates as a dual-speed system: low speeds destratify air by drawing down trapped ceiling heat and reducing humidity; high speeds mitigate severe heat stress. Construction includes an aerodynamic fiberglass cone, 6 balanced aluminum blades, an automatic belt tensioner and a corrosion-resistant steel frame for quiet, high-capacity operation.

Key benefits

• Smooth speed adjustment for destratification and targeted cooling
• High airflow output suitable for large livestock houses
• Reduced vibration from balanced aluminum blades
• Automatic belt tensioner for simplified maintenance
• Adjustable deflectors to optimize air throw and direction
• Lower lateral air loss compared with open-sided fans
• Easy belt changes without removing the propeller

Technical specifications

• Propeller: 1.83 m diameter with 6 balanced aluminum blades
• Maximum airflow: up to 1,260 m³/min
• Efficiency: 0.68 m³/min per Watt
• Motor power: 3.0 HP (50 Hz or 60 Hz options)
• Voltage options: 208 V, 230 V, 460 V (corresponding amperages: 13.2 A, 8.6 A, 8.0 A, 4.3 A)
• Speed control: single-speed or smooth variable-speed
• Materials: corrosion-resistant steel housing, fiberglass aerodynamic cone, 100% PVC adjustable deflectors
• Drive maintenance: automatic belt tensioner allowing belt changes without removing the propeller
