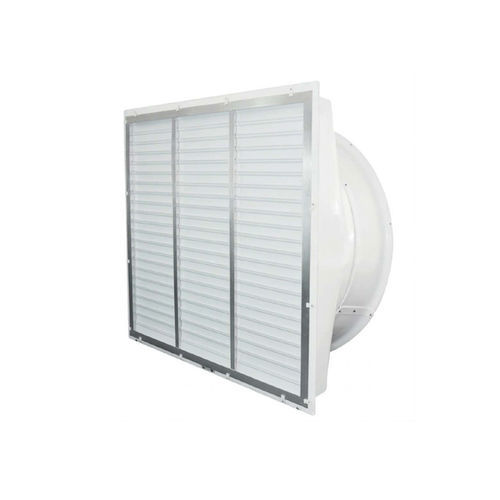

Greenhouse fan Max 72''

farm buildingfor aviariesfor livestock buildings

Overview
The Exhaust fan Max 72'' is a heavy-duty, high-volume ventilation unit engineered for rapid air exchange in agricultural buildings (livestock houses, poultry houses, greenhouses). Its beltless direct-drive design removes belt maintenance and improves uptime. The integrated Variable Frequency Drive paired with a motor exceeding IE5 efficiency delivers precise speed control and energy savings. Composite fiberglass-reinforced blades and a corrosion-resistant housing are specified for humid, corrosive farm environments. IP66-rated enclosures protect the motor and connections. Soft start/stop reduces mechanical stress. Supports automation via 0-10V or Modbus for seamless climate-control integration.

Technical specifications

• Frame size: 72-inch high-volume frame with fiberglass-reinforced composite blades
• Airflow capacity: up to 49,578 CFM (84,234 m³/h)
• Efficiency rating: 22.8 CFM/W (38.7 m³/h/W)
• Motor power: 4 HP (3 kW) direct-drive motor exceeding IE5
• Speed regulation: 100 to 319 RPM via built-in Variable Frequency Drive
• Power configurations: Single-phase 230 V and Three-phase 360–460 V
• Ingress protection: IP66 rated for motor and connection enclosures
• Control protocols: 0–10 V and Modbus

Key benefits

• Meets or exceeds IE5 energy-efficiency standards
• Maintenance-free direct drive (no belts)
• IP66 protection for dust-tight and water-resistant operation in harsh agricultural conditions
• Easy integration with automated climate and ventilation systems

Specifications / Technical data

• Frame: 72-inch high-volume
• Blades: Fiberglass-reinforced composite
• Max airflow: 49,578 CFM (84,234 m³/h)
• Motor: 4 HP (3 kW), IE5+
• Speed: 100–319 RPM (VFD)
• Voltages: 230 V single-phase; 360–460 V three-phase
• Protection: IP66
• Controls: 0–10 V, Modbus
