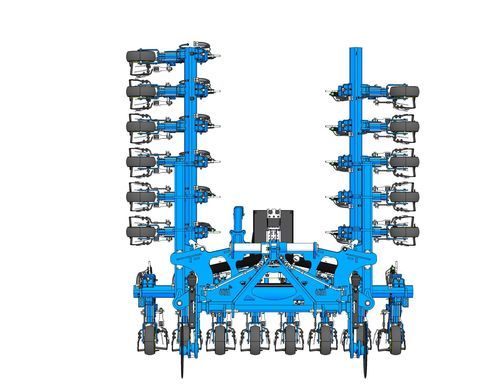

Tractor-mounted in-row cultivator METIS EN V

discwith camerawith guiding system

Overview
METIS V is a V-fold row hoe designed for mechanical weed control and precise element positioning on a wide range of row crops. On-board guidance and control systems enable efficient operation across varying row spacings and field conditions.

Features

• Compact, maintenance-free side-shift with 500 mm stroke
• Stabilizer discs, adjustable manually or automatically
• Hydraulic load transfer to all gauge wheels for uniform weight distribution
• Self-steering modes:
  • Manual via joystick
  • Camera guidance
  • Crop sensors
  • Ultrasound sensors
• Easy-to-use in-cab management console (ISOBUS compatible)
• Element lift control panel
• CAN bus network
• Quickly adapts to row spacings from 12.5 to 90 cm
• Tool springs held in forks with scale; multiple mounting positions for attachments
• Optional sprayer on row or between rows (pulse spraying option)
• Work lighting, road lighting and road kit
• CE compliance

Options

• Separate SS300 side-shift (U-fold)
• Hydraulic stabilizer discs
• Hydraulic predisposition for inter-row change
• Pulse spraying on or between crop rows
• Treated shares
• Flexible finger weeders
• Crop protection discs
• Ringed gauge wheels for the last pass; double gauge wheel option
• Element positioning on the row for increased precision (two gauge wheels and two cutting discs)
• Customized 45° lifting of elements (manual or automatic) with gauge wheels on the ground

Tractor adaptation

• Open-circuit or load-sensing hydraulic supply
• Double-acting circuit for folding
• Single-acting circuit for adjustment of hydraulic stabilizer discs
• Single-acting circuit for adjusting the load transfer of the elements

Technical specifications

• Model: METIS V Hoe
• Row spacing adaptability: 12.5 to 90 cm
• Side-shift: compact, maintenance-free (stroke 500 mm; option: separate SS300 side-shift U-fold)
• Stabilizer discs: manual or automatic adjustment (option: hydraulic stabilizer discs)
• Load transfer: hydraulic to all gauge wheels
• Self-steering modes: joystick, camera, crop sensors, ultrasound
• Control: in-cab management console; element lift control panel; CAN bus network; ISOBUS compatible
• Attachments: multiple positions; tool springs held in forks with scale; wide choice of optional tools (finger weeders, crop protection discs, treated shares)
• Spraying: on-row or between-row sprayer; pulse spraying option
• Lighting & road equipment: work lighting, road lighting, road kit
• Translate stroke: 500 mm
• Folding: hydraulic V-fold
• Road width folded: approx. ±2.8 m
• Construction without bearings for reduced maintenance
• Compliance: CE
