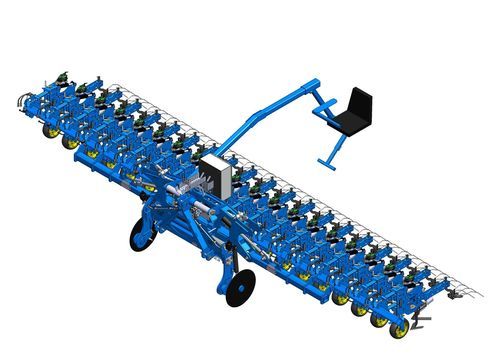

Tractor-mounted row crop cultivator METIS UG

discwith cameraspring tine

METIS UG
The METIS UG is an extra-wide inter-row cultivator designed for precise in-row work, efficient load transfer and flexible guidance options for professional arable operations.

Key Features:

• Compact, maintenance-free side shift: ensures optimum stability
• Stabiliser discs:
  • Manual or automatic adjustment
  • Positive clamping to maintain direction on slopes
  • Adaptable to tractor track width
• Simple adjustment to row spacing: compatible with a range of row spacings
• Hydraulic load transfer:
  • Parallelogram on each element fitted with a cylinder
  • Oil flows freely between elements to balance load
• Each gauge wheel maintains constant and even ground pressure regardless of position
• Drawn gauge wheels: no steering effect and easier traction
• Baskets lift to 45° while gauge wheels remain on the ground, keeping the assembly parallel and guidance functional
• Implement springs in graduated forks for precise, repeatable adjustments
• Multiple implement mounting points for different tools and configurations
• Flat coulters for consistent working depth across the row
• Autosteering options:
  • Manual joystick
  • Standalone RTK camera
  • Standalone RTK
  • RTK linked to tractor RTK
  • Sensors
• ISOBUS console: CCI-compatible for intuitive control
• Lighting and road gauge compliant with EC standards
• Integrated working lights adaptable to different row spacings

Available options:

• Hydraulic stabiliser discs with automatic adjustment for variable terrain
• Pre-set for variable row spacing for rapid reconfiguration
• Spraying system: along the row or between rows
• Treated coulters for increased durability in abrasive soils
• Rotating tines designed to work between young seedlings
• Harrow / rotary harrow tines for levelling and loosening soil
• Cutting discs to prevent crop uprooting
• Rimmed depth wheels to reduce blockage when closing rows
• Two depth wheels per row per unit for higher working precision
• Individual 45° lift of tine assemblies: manual or automatic while keeping gauge wheels on the ground
• Pre-fitted for RTK antenna

Tractor compatibility:

• Hydraulic power supply: continuous flow or load-sensing
• Single-acting circuit for adjusting hydraulic stabilisers
• Single-acting circuit for load transfer

Technical specifications

• Product name: METIS UG (extra-wide inter-row cultivator)
• Compact maintenance-free side shift for optimal stability
• Stabiliser discs with manual or automatic adjustment and positive clamping
• Hydraulic load transfer with cylinder on each parallelogram element and inter-element oil flow
• Gauge wheels keep constant ground pressure; drawn wheels for reduced steering effect
• Baskets lift to 45° with gauge wheels remaining on the ground
• Graduated forks with implement springs for precise settings
• Multiple tool mounting points and flat coulters for uniform depth
• Autosteering variants and ISOBUS (CCI) compatibility
• Lighting and road gauge compliant with EC standards
• Wide range of available options to adapt to crop and soil conditions
