Hydraulic side-shift SS500
for cultivator

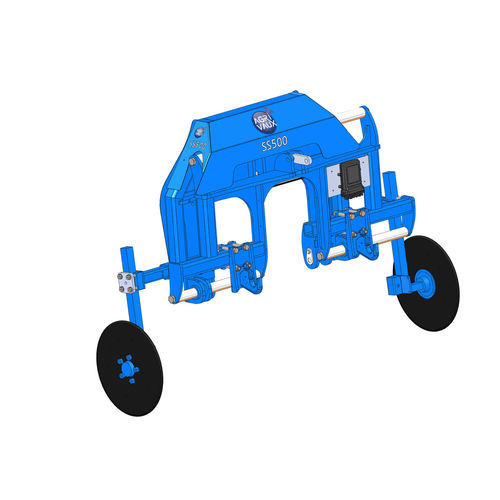

Hydraulic side-shift - SS500 - AGRIVAUX - for cultivator
Hydraulic side-shift - SS500 - AGRIVAUX - for cultivator
Add to favorites
Compare this product
Go to the AGRIVAUX website for more information

Characteristics

Other characteristic
hydraulic, for cultivator

Description

Presentation
  • Electrohydraulic translator model SS500 for lateral guidance of mounted implements.


MULTIPLE APPLICATIONS :
  • Pre-sowing: guide implements such as rotary harrow, cultivator, rotary tiller, sprayer, etc.
  • Sowing/planting: accurately position seeds or seedlings.
  • Pre-emergence: close work alongside crop rows.
  • Post-emergence: hoeing, inter-row cultivation, harrowing, ridging, spraying even under dense vegetation cover.
  • Harvest operations.


KEY FEATURES
  • Translator with a top-controlled cylinder and two self-aligning sleeves sliding on chromed rods.
  • 3-point linkage category 3 on tractor and implement sides.
  • Stabilizer discs with adjustable track from 1.50 to 2.25 m.
  • Support legs included.
  • Low-maintenance design.


Central opening
  • Allows PTO shaft passage.
  • Provides space for camera installation.


Robust
  • Tubular structure ensures overall strength while offering an attractive appearance.


Compact
  • Reduced center distance between front and rear linkage points, improving guidance of mounted tools.
  • Low overall height enhances visibility of mounted implements.


Lightweight
  • Main structure in round tubes combines high rigidity with minimal bulk.


Versatile
  • Power for mounted implements via PTO.
  • Guidance by camera.
  • Track width adjustment.
  • Adjustable implement-side linkage center distance.
  • Multiple guidance options available.
  • Hydraulic system configurable in closed circuit or load sensing.


Aesthetics
  • Fluid shapes and an open, attractive structure.
  • High-quality durable paint finish.
  • User-friendly in-cab control unit.


OPTIONS
  • Guidance:
    • Joy Stick
    • Camera
    • Standalone RTK
    • RTK linked to tractor
    • Ultrasonic sensors
    • Tactile sensors
  • Stabilizer discs:
    • Shouldered discs with mud scrapers
    • Hydraulically auto-adjusting discs
  • Speed sensor


OPERATION
  • Crop rows are detected by the chosen method (US, camera, tactile sensors, RTK, etc.).
  • An in-cab unit receives and interprets positioning data.
  • Positioning information is sent to the electrohydraulic block that operates the cylinder.
  • When the implement is lifted, the translator recenters automatically.
  • The in-cab unit displays useful information, allows parameter adjustment and reports faults precisely.


IN-CAB DISPLAY
  • Available information:
    • Translator position
    • Implement position (lowered or raised)
    • Translator responsiveness level
    • Partial and total worked area if speed sensor installed
    • Available controls:
      • Change translator position
      • Adjust translator responsiveness
      • Modify a range of technical parameters


Technical specifications
  • Model: SS500.
  • Type: Electrohydraulic translator with top-controlled cylinder.
  • Sleeves: Two self-aligning sleeves sliding on chromed rods.
  • Linkage: 3-point category 3 on tractor and implement sides.
  • Stabilizer discs: Track adjustable from 1.50 to 2.25 m (options: shouldered discs, mud scrapers, hydraulic auto-adjust).
  • Support legs included.
  • Maintenance: low-maintenance design.
  • Central opening for PTO passage and camera mounting.
  • Structure: Tubular frame with round tubes for high rigidity and compact footprint.
  • Guide cylinder: Oversized for smooth lateral translation.
  • Reduced linkage center distance for improved tool guidance.
  • Implement drive: PTO possible.
  • Hydraulics: Compatible with closed circuit or load sensing systems.
  • Cab interface: In-cab unit displaying position, implement state, responsiveness, worked areas and configurable settings.
