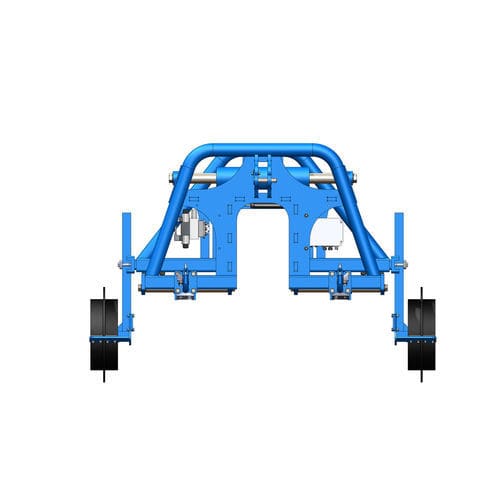

Cultivator side-shift SS300

hydraulic

Overview
The SS300 is an electro-hydraulic side-shift translator for tractors, designed to guide and laterally position mounted implements. It accepts a PTO shaft and integrates tubular main framing for strength with compact overall dimensions.

MULTIPLE APPLICATIONS :

• Pre-seeding: guide seedbed tools (vibro, cultivators, rotavators, sprayers).
• Sowing/planting: precise positioning of seeds or seedlings.
• Pre-emergence: close operations near crop rows.
• Growing season: hoeing, weeding, ridging, spraying even under dense vegetation.
• Harvest operations.

FEATURES
Designed to accommodate a PTO shaft
Solid

• Tubular/round-tube main structure for mechanical strength and compactness.
• Oversized guidance cylinder with two self-aligning bushings for smooth lateral motion.

Compact

• Minimized centre-to-centre distance between front and rear hitches to optimize implement guidance.
• Reduced overall height for improved visibility of mounted implements.

Lightweight

• Round-tube construction offers high strength with low space requirement.

Versatile

• Central opening for PTO shaft passage and camera mounting.
• Stabilizer discs with infinitely adjustable track from 1.50 to 2.25 m.
• Machine-side hitch adaptable to different implement types.
• Available guidance systems: ultrasonic, camera, row sensors, RTK, joystick control.
• Hydraulic system configurable in closed-circuit or load-sensing mode.

Aesthetics

• Fluid shapes and an airy structure for practical visibility and service access.
• Shot-blasted, sandblasted and metallized finish followed by two coats of powder coating for durability.
• User-friendly in-cab control unit.

COMPOSITION
Standard :

• Side-shift with controlled upper cylinder and two self-aligning bushings sliding on chrome-plated rods.
• 3-point linkage: Category 2 on tractor side; Category 3 automatic on machine side.
• Stabilizer discs, track adjustable 1.50–2.25 m.
• Support legs.

Optional :

• Joystick control
• Ultrasonic sensors with OPUS in-cabin box
• Row sensors
• Shoulder stabilizer discs with scrapers
• Hydraulic load-shifting stabilizer discs
• Speed sensor

OPERATION

• Tool position is detected by the selected guidance technique (ultrasound, camera, row sensors, RTK).
• A control unit receives and interprets sensor data.
• Commands are relayed to the electro-hydraulic valve to adjust the side-shift.
• When the implement is raised, the side-shift recenters automatically.
• The in-cab unit displays status, allows parameter adjustment and provides diagnostic information.

OPUS IN-CABIN DISPLAY

• Information: side-shift position; tool lowered/raised status; side-shift responsiveness; worked area (partial/total) if speed sensor installed.
• Controls: change side-shift position; adjust responsiveness; modify technical parameters.

MAINTENANCE

• Lubrication of self-aligning bushings and regular inspection of hydraulic connections.

Technical specifications

• Model name: SS300
• PTO passage: central opening for PTO shaft and camera positioning
• Main structure: tubular / round-tube
• Guidance: oversized cylinder with two self-aligning bushings
• Side-shift: controlled upper cylinder, lower bushings sliding on chrome-plated rods
• Hitch spacing: minimized front/rear centre-to-centre distance
• Height: reduced for better implement visibility
• Stabilizer discs: track adjustable 1.50–2.25 m; optional scrapers or hydraulic load-shifting
• Linkage: Category 2 (tractor side); Category 3 automatic (machine side)
• Hydraulics: closed circuit or load-sensing
• Finish: shot-blasted, sandblasted, metallized, two coats powder coating
• Options: joystick, ultrasonic sensors with OPUS, row sensors, speed sensor
