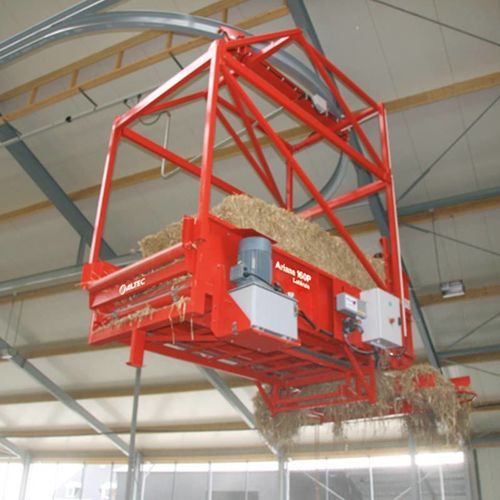

Rail-mounted straw blower DT 125

beddingfor square baleselectric

Overview
The suspended bedding spreader for square bales DT 125 is designed to bed square bales while optimizing floor space. It is available in two versions: an Axial version (disc spreading) and a Lateral version (rake spreading). Operation is driven by a low-consumption electric hydraulic unit. Machine control is from an onboard control station or by radio remote.

Operation and benefits

• Gentle, dust-free bedding comparable to manual bedding.
• Maximizes available floor space thanks to the suspended system.
• Quiet electric hydraulic unit with low consumption and easy maintenance.
• Control possible from an integrated driving station or by radio remote.
• Two versions available: Axial (discs) and Lateral (rakes).

Custom installation
Site-specific studies are carried out to adapt the installation precisely to the farm's needs.

Disc spreading
The spreading discs (Axial version) provide a wide, uniform distribution to cover the bedding area evenly (example width indicated for related machines: 8 meters).

Rake spreading
The Lateral rake version enables deep spreading (e.g. 5 to 6 meters) and precise orientation to target specific areas.

Technical specifics (source table)
Max bale diameter (cm): –
Square bale 120x120x250 cm: 1
Spreading width (m): 8
Rotation: 360°
Control: Integrated driving station or radio remote
Drive: Electric hydraulic unit 9.3 kW with 2 pumps
Installation: Mono Rail
Unladen weight (kg): 1300

Technical features / specifications

• Model: DT 125 (Axial and Lateral versions)
• Compatible square bale: 120 x 120 x 250 cm
• Spreading width: 8 m
• Spreading depth (rakes): 5 to 6 m (Lateral version)
• Rotation: 360°
• Control: Integrated driving station or radio remote
• Hydraulic unit: 9.3 kW with 2 pumps (electric drive)
• Installation: suspended mono rail
• Unladen weight: 1300 kg
