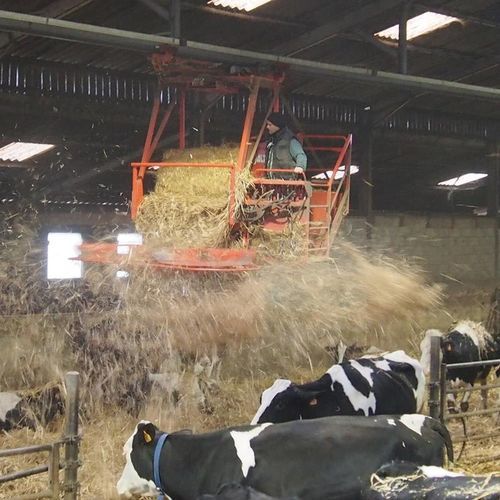

Rail-mounted straw blower DR 170

beddingfor round baleselectric

Overview
Our range of suspended DR 170 straw spreaders is designed to deliver gentle, low-dust bedding comparable to manual spreading. Round-bale spreaders are available in two models: the Axial version with disc spreading and the Lateral version with comb/tine spreading. The suspended system is engineered to optimize floor space.

Operation and benefits

• Gentle bedding with dust reduction comparable to manual spreading.
• Two versions available: Axial (disc spreading) and Lateral (comb/tine spreading).
• Suspended design keeps maximum floor area free.
• Powered by a low-consumption electric hydraulic power unit for quiet operation and simplified maintenance.
• Can be controlled from an on-board control station or via radio remote control.

Custom installation
Installation studies are carried out on a case-by-case basis to adapt the system to the needs of the operation.

Disc spreading (Axial version)
The disc spreaders of the DR 170 Axial allow bedding of round bales over a width of 8 metres to cover every area.

Comb/tine spreading (Lateral version)
The comb spreaders of the DR 170 Lateral allow bedding of round bales to a depth of 5 to 6 metres. The spreader is steerable to target specific zones precisely.

Specifications / technical data

• Max bale diameter (cm): Ø 140
• Square bale 120x120x250 cm: –
• Working width (m): 8
• Rotation: 360°
• Control: On-board control station or radio remote control
• Drive: Electric drive – hydraulic power unit 9.3 kW with 2 pumps
• Installation: Monorail
• Unladen weight (kg): 1300
