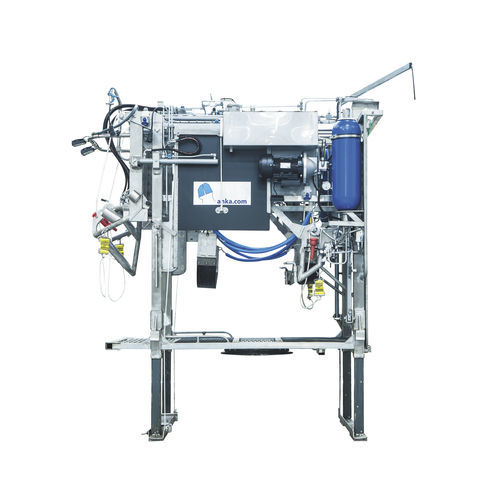

Cattle squeeze chute PRO ACCUMULATOR
hydraulichoof-caremobile

cattle squeeze chute
cattle squeeze chute
cattle squeeze chute
cattle squeeze chute
cattle squeeze chute
Add to favorites
Compare this product


Characteristics

Animal type
for cattle
Control
hydraulic
Other characteristics
hoof-care, mobile

Description

Hydraulic & electric system: -Single-phase 2.2 kWe motor with silentblocks -Helical oil pump 4 CC (Especially silent) -2x20L oil accumulators -All hydraulic functions: crush lifting, front and tail gate, double belly band and 4 legs. -Special hydraulic oil for extreme climates ( HVLP-46) -Rotative power supply connection Dimensions & weight: -Outer dimensions: 2265 (Length) x2125 (Height) x1580mm (Width) -Inner dimensions: 1660 (Length) x1700 (Height)x 790 (Width) -Weight: 980kg Structure: -100% Stainless steel -Double belly band cow lifting system -Ergonomic for worker, height regulation of the crush according to worker height Other features: -LED lights in all claws -20m cable connection (single phase/16A power supply) -Wheel system to place crush in working position -Remote control for front gate -USB loading connection -1 rotating electric socket for the grinder + 4 fix sockets (1 in the left front, 1 in the right front, 2 in the right back(top). -High resistance ropes (Dyneema) -Silentblocks in the crush legs to prevent slippage -6 greasing points with greaser: >Rotating points of the tail gate cylinder (2) >Rotating points of the tail gate (2) >Back wheels (2) -11 greasing points with brush >Crush Legs (4) >Rope guide rail -CE Mark

VIDEO

Catalogs
