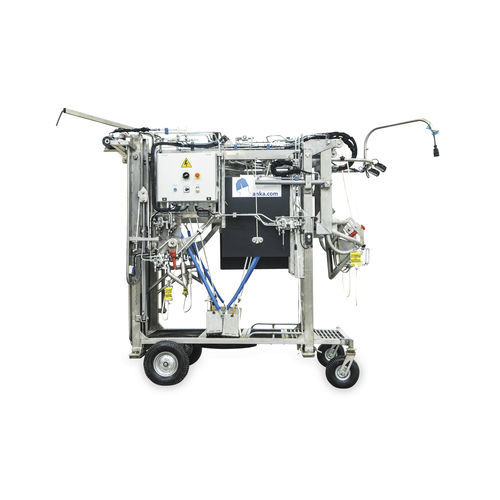

Cattle squeeze chute PRO 2.0

hydraulicmobile

Hydraulic & electric system: -Three-phase 5.5 kWe motor with silentblocks -Helical oil pump 16.1 CC (Especially silent) -All hydraulic functions: crush lifting, front and tail gate, double belly band and 4 legs. -Special hydraulic oil for extreme climates (HVLP-46) -Rotative power supply connection Dimensions & weight: -Outer dimensions: 2265 (Length) x2125 (Height) x1580mm (Width) -Inner dimensions: 1660 (Length) x1700 (Height)x 790 (Width) -Weight: 850kg Structure: -100% Stainless steel -Double belly band cow lifting system -Ergonomic for worker, height regulation of the crush according to worker height Other features: -LED lights in all claws -20m cable connection (three phases/32A power supply) -Wheel system to place crush in working position -Remote control for front gate -USB loading connection -1 double rotating electric socket for the grinder and heated gun + 4 fix sockets (1 in the left front, 1 in the right front, 2 in the rightback(top). -High resistance ropes (Dyneema) -Silentblocks in the crush legs to prevent slippage -14 Greasing points with greaser *Valve levers (8) (with winching 1 point more) *Rotating points of the tail gate cylinder (2) *Rotating points of the tail gate (2) *Back wheels (2) -11 greasing points with brush *Crush Legs (4) *Rope guide rail CE Mark
