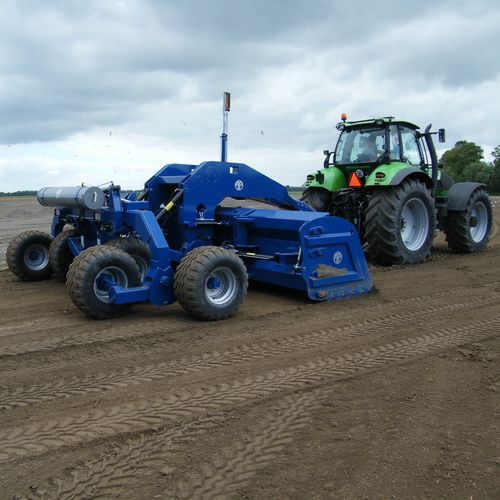

Field preparation grader blade KB series
hydraulic

field preparation grader blade
field preparation grader blade
field preparation grader blade
field preparation grader blade
field preparation grader blade
field preparation grader blade
field preparation grader blade
field preparation grader blade
Add to favorites
Compare this product


Characteristics

Application
for field preparation
Other characteristic
hydraulic
Blade width

Min.: 5,000 mm
(197 in)

Max.: 8,000 mm
(315 in)

Description

The AP foldable box graders are used for major work. They are available in working widths from 400 to 800 cm with a blade height of 110, 130 or 140 cm. The foldable grading boxes are hydraulically foldable to 265 cm for road transport. All AP grading boxes are delivered with an approval certificate EU regulations 167/2013 and thereby providing the possibility to apply for a licence plate. All foldable types can be equipped with grader function, laser, LPS or GPS control. Both foldable blade parts fold in forwards. When the grading box is active both parts rest in the stops so the hydraulic cylinders are not subjected to great forces during grading. Due to the special blade with 2 radii the ground always keeps “rolling”, even if the grading box is getting more fuller. The gooseneck drawbar is positioned at a measured distance from the special blade and the soil so the ground cannot get jammed under the drawbar. The gooseneck drawbar makes sure that the material in front of the blade has enough space to “roll”. The position of the drawbar is a determining factor in the permissible volume of material. The result of the grading and the power requirements of the tractor depend on the way the ground moves in front of the blade. If the bucket is full and the ground touches the drawbar then the ground will not “roll” anymore because the ground will accumulate under or around the drawbar.
