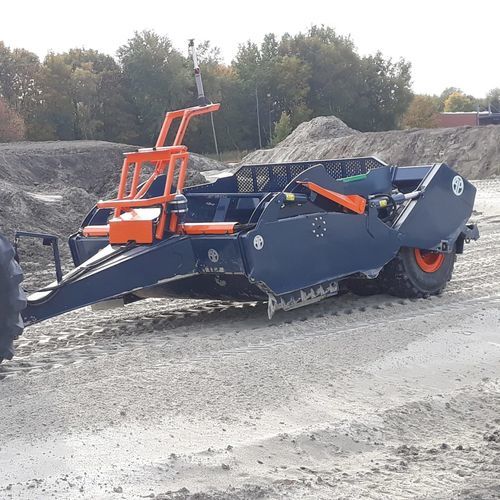

Ejector pull type scraper APS 15

for field preparationlaser guided

Overview
AP scrapers are designed to load material at a set height, transport it over distance and discharge at the required height. Transport and levelling functions can be combined in one machine. For many earthmoving projects a tractor with AP scraper is a cost-efficient alternative to crawler excavators with dumpers, offering savings on labour, fuel and depreciation by using a single power unit.

Main features

• Two product families: APC (carry-all) for tractors up to ~200 hp and APS for heavier duties
• Hardox cutting blades (Hardox 470) for long wear life
• Hydraulic proportional controls; APS offers electrically operated functions
• Available options: tandem coupling, laser/GPS control, automatic lubrication, multiple wheel configurations

Standard configuration — APC carry-all

• Hydraulic proportional control
• 2 wheels 16.00 x 20
• Removable Hardox cutting blade
• Rear lights

Table - APC carry-all (overview)
Type; APC 6; APC 7; APC 9
Capacity m³; 6.5; 8; 10
Blade width mm; 2300; 2600; 2800
Depth mm; 1500; 1750; 1750
Transport width mm; 2650; 3000; 3200
Required power hp; 80-110; 100-140; 160-220

Options — APC scrapers

• 4 wheels instead of 2
• Single laser control
• Hydraulically closable front gate
• Paint colour to customer RAL

Standard configuration — APS scrapers

• Heavy, independently rotating and adjustable rims
• Swivelling heavy hooks with 50 mm pin
• Hydraulically sprung axle with accumulator
• Electrical system: lights, indicators and brake light, 12 V
• Diagonal yellow/orange safety markings on rear
• Self-sharpening, rotating Hardox 470 cutting blade
• Electrically operated functions

Table - APS scrapers (overview)
Type; APS 12.5; APS 15; APS 20; APS 25
Max. capacity m³; 12.5; 15; 20; 25
Blade width mm; 2500; 3000; 3800; 4500
Total width mm; 3000; 3500; 3800; 4500
Total length mm; 7650; 7650; 8150; 8150
Empty weight kg; 10500; 12500; 14000; 16500
Max. weight kg; 32500; 39500; 45500; 61500
Required power hp; 220-300; 280-300; 295-340; 295-400
Loading/unloading type; Fixed blade and tipping box (APS 12.5 & 15); Push-out (APS 20 & 25)

Options — APS scrapers

• Heavy steel counterweight at rear
• Disc brake connected to tractor brake system
• Automatic lubrication system for pivots and cylinders
• Coupling for second scraper (tandem)
• Laser / GPS control
• Platform for GPS or laser
• Painted in customer colour (RAL on request)

Technical specifications

• Series: AP Scrapers (APC carry-all and APS series)
• Materials: Hardox cutting blades (Hardox 470)
• Drive & control: Hydraulic proportional control; electrically operated functions on APS
• Wheels & suspension: Standard 2 wheels (APC) or heavy independently rotating rims and hydraulically sprung axle (APS)
• Options: Laser/GPS control, tandem coupling, brake systems, automatic lubrication, custom paint
• Applications: Levelling, earthmoving, storage, dumping and transport; suitable where tractor-scraper is more economical than excavator + dumpers
