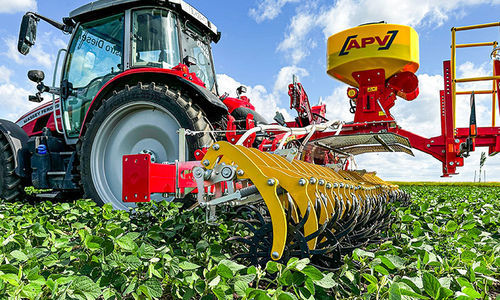

Rotary weeder RC 900 M1

mechanicalmounted

Product description
The RC precision rotary crusher (Rotary Crusher) is an implement for crop maintenance that combines high field capacity with effective crust breaking and mechanical weed control. It is particularly suited to breaking surface crusts and reducing weeds mechanically. Each star tine can apply up to 30 kg of pressure to the soil. The working pressure is hydraulically adjustable as standard and the design maintains an almost constant tool pressure over the full spring travel.

Working principle
Thanks to an optimal ratio between the number of star tines and machine weight, the RC excels at breaking surface crust. The unique suspension ensures consistent tool pressure throughout the spring travel. The pressure is hydraulically adjustable. Each star tine is individually suspended and mounted, yielding uniform soil treatment across the entire working width.

PRECISE

• Continuous crust breaking
• Constant pressure across the full spring travel
• Good soil adaptation
• Original Yetter star tines with self-sharpening points
• Each star tine individually suspended and mounted
• Uniform working result across the full working width
• Effective also in wheel tracks

VERSATILE

• Optional hydraulic sectional lift for each 1.5 m working section
• High working pressure up to 30 kg per star
• Suitable for ridge/dike cultivation
• Machine center of gravity close to the tractor → reduced lift requirement
• Multiple uses: crop maintenance, crust breaking, cover crop management, reduction of cover crops, stimulating germination of volunteers (e.g., fallen cereals/rape)

COMFORTABLE

• High field capacity
• Innovative frame concept with compact folding
• High manufacturing quality
• High working pressure up to 30 kg per star
• Stone protection grid
• Reliable weed control
• Hydraulic adjustment of working pressure
• Hydraulic transport lock

Applications

• Mechanical weed control
• Covering uprooted weeds
• Promoting soil life
• Stimulating tillering

Technical data (excerpt)
RC 600 M1:
Working width: 6.15 m
Folded dimensions (HxWxD): 2.90 x 2.98 x 2.15 m
Net weight: 2,200 kg
Mounting category: CAT 2
Min. tractor power: 74 kW / 100 PS
Ring spacing / tine spacing: 90 mm
Ring diameter: 540 mm
Number of tine rings: 68 pcs

RC 900 M1:
Working width: 9.20 m
Folded dimensions (HxWxD): 3.65 x 2.65 x 1.90 m
Net weight: 3,750 kg
Mounting category: CAT 3 / CAT 3N
Min. tractor power: 103 kW / 140 PS
Ring spacing / tine spacing: 90 mm
Ring diameter: 540 mm
Number of tine rings: 102 pcs

RC 1200 M1:
Working width: 12.30 m
Folded dimensions (HxWxD): 3.65 x 2.65 x 1.90 m
Net weight: 4,300 kg
Mounting category: CAT 3 / CAT 3N
Min. tractor power: 140 kW / 190 PS
Ring spacing / tine spacing: 90 mm
Ring diameter: 540 mm
Number of tine rings: 136 pcs

Characteristics / Specifications

• Product series: RC (Rotary Crusher)
• Hydraulically adjustable working pressure
• Original Yetter star tines, self-sharpening points
• Individual suspension of each star tine with spring element for constant working pressure
• Stone protection cover
• Hydraulic transport lock
• Folding variants: RC 600 with package folding; RC 900/1200 with M-fold and integrated V-fold
• Required control units for folding: RC 600 M1 → 2 double-acting control circuits; RC 900/1200 → 3 double-acting control circuits
