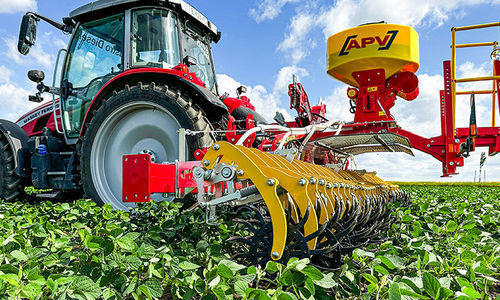

Rotary weeder RC 600 M1

mechanicalmounted

Short description
The Precision rotary hoe RC (Rotary Crusher) is designed for in-crop maintenance with high field capacity. It is particularly effective at breaking surface crusts and for mechanical weed control, providing hydraulically adjustable, near-constant tool pressure.

Operating principle
The optimal ratio between the number of star points and machine weight makes the RC especially suitable for breaking crusts. Each star point can exert up to 30 kg on the soil. The unique design ensures a near-constant tool pressure throughout the spring travel. Pressure is hydraulically adjustable as standard.

PRECISE

• Continuous crust breaking
• Consistent pressure across full spring travel
• Good soil following
• Original Yetter star points
• Each star point individually suspended and mounted
• Uniform working result across the full working width
• Effective even in tramlines

VERSATILE

• Optional hydraulic sectional lift for each 1.5 m working section
• High working pressure up to 30 kg per star
• Suitable for ridge cultivation
• Machine center of gravity close to the tractor → reduced lift requirement
• Multiple uses: crop care implement, crust breaker, cover crop management, reduction of cover crops, stimulation of volunteer cereals/rapeseed emergence

COMFORTABLE

• High field capacity
• Innovative frame concept with compact folding
• High build quality
• High working pressure up to 30 kg per star
• Stone protection grid
• Reliable weed removal
• Hydraulic adjustment of working pressure
• Hydraulic transport lock

Applications

• Mechanical weed control
• Covering weeds
• Promoting soil life
• Stimulating tillering

Additional information

• Proven Yetter star points with self-sharpening tips ensure low-wear operation and long-lasting performance; tips penetrate the soil, break the crust and lift weeds, allowing shallow and water-conserving working depth.
• Hydraulic adjustment of working pressure as standard; one spring element per star point for constant working pressure; each star point individually suspended.
• Hydraulic transport lock; RC 600 with package folding, RC 900/1200 with M-fold and integrated V-fold.

Technical specifications

• RC 600 M1: Working width: 6.15 m; Folded dimensions (H×W×D): 2.90 × 2.98 × 2.15 m; Weight: 2,200 kg; Mounting category: CAT 2; Min. tractor power: 74 kW / 100 HP; Ring spacing / tooth spacing: 90 mm; Ring diameter: 540 mm; Number of star rings: 68 pcs.
• RC 900 M1: Working width: 9.20 m; Folded dimensions (H×W×D): 3.65 × 2.65 × 1.90 m; Weight: 3,750 kg; Mounting category: CAT 3 / CAT 3N; Min. tractor power: 103 kW / 140 HP; Ring spacing / tooth spacing: 90 mm; Ring diameter: 540 mm; Number of star rings: 102 pcs.
• RC 1200 M1: Working width: 12.30 m; Folded dimensions (H×W×D): 3.65 × 2.65 × 1.90 m; Weight: 4,300 kg; Mounting category: CAT 3 / CAT 3N; Min. tractor power: 140 kW / 190 HP; Ring spacing / tooth spacing: 90 mm; Ring diameter: 540 mm; Number of star rings: 136 pcs.
