Surveillance camera ArkCam Velos - GMSL2for farm machineryfor agriculturereal-time
Add to favorites
Compare this product
Characteristics
- Function
- surveillance
- Application
- for farm machinery, for agriculture
- Other characteristic
- real-time
Description
Product description

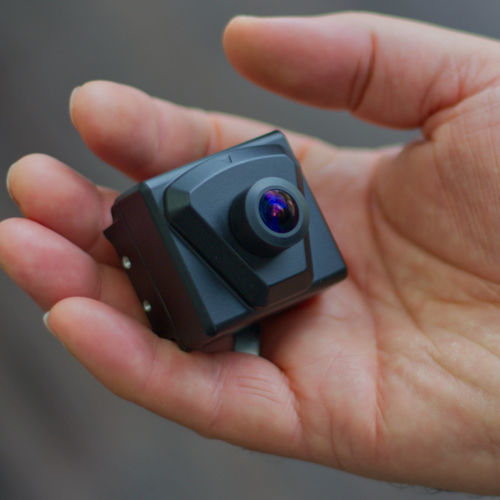

The ArkCam Velos is a 2-megapixel industrial camera with a CMOS sensor and HDR. It delivers 1920x1080 resolution at up to 60 fps and provides real-time, high-detail imaging. For data transmission the camera uses MIPI-CSI2 (YUV8) over GMSL2 at 3 Gbit/s. The link is carried over a robust coaxial cable with a GMSL2 serializer (MAX96717). Power is supplied via Power over Coax (PoC) at 9–36 V DC. With field of view options of 60°, 90°, 130° and 180°, the ArkCam Velos adapts to diverse applications. It is designed for extreme conditions and operates reliably between -40°C and +85°C. The camera complies with relevant EMC standards for industrial, off-road and construction machinery. It is shock- and vibration-resistant (up to 50 g) and offers IP67/IP69K protection against dust, water and high-pressure cleaning. The powder-coated aluminium housing increases durability. Variants with 6 Gbit/s and without ISP are available.
Additional product information
Technical specifications
The ArkCam Velos is a 2-megapixel industrial camera with a CMOS sensor and HDR. It delivers 1920x1080 resolution at up to 60 fps and provides real-time, high-detail imaging. For data transmission the camera uses MIPI-CSI2 (YUV8) over GMSL2 at 3 Gbit/s. The link is carried over a robust coaxial cable with a GMSL2 serializer (MAX96717). Power is supplied via Power over Coax (PoC) at 9–36 V DC. With field of view options of 60°, 90°, 130° and 180°, the ArkCam Velos adapts to diverse applications. It is designed for extreme conditions and operates reliably between -40°C and +85°C. The camera complies with relevant EMC standards for industrial, off-road and construction machinery. It is shock- and vibration-resistant (up to 50 g) and offers IP67/IP69K protection against dust, water and high-pressure cleaning. The powder-coated aluminium housing increases durability. Variants with 6 Gbit/s and without ISP are available.
Additional product information
- Product brochure (PDF) available
Technical specifications
- Resolution: 1920x1080 (2MP)
- Sensor: CMOS with HDR
- Maximum frame rate: up to 60 fps
- Integrated ISP
- Interface: MIPI-CSI2 (YUV8) via GMSL2 @ 3 Gbit/s
- Connection: GMSL2 over coax; serializer type MAX96717-F
- Power supply: 9-36 V DC Power over Coax (PoC)
- Field of view: 60°, 90°, 130°, 180°
- Operating temperature: -40°C to +85°C
- Mechanical robustness: up to 50 g (shock/vibration)
- Ingress protection: IP67 / IP69K (high-pressure cleaning compatible)
- Housing: powder-coated aluminium
