Surveillance camera Basic+ mini

for farm machineryfor agriculturereal-time

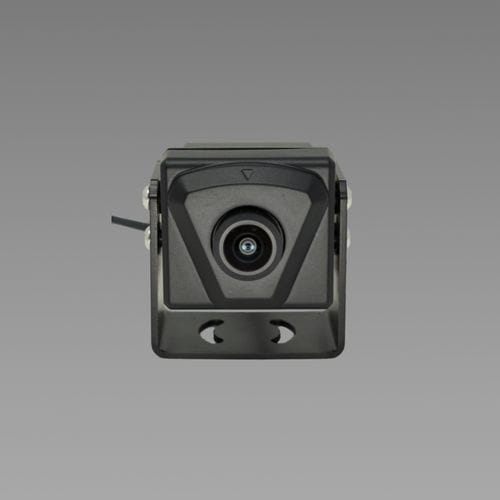

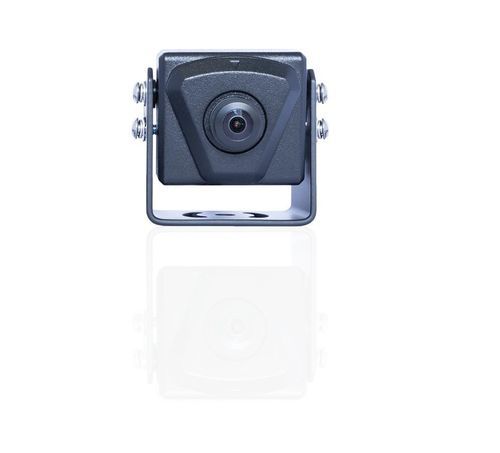

The Ethernet camera “ArkCam Basic+ mini” is the perfect all-rounder for monitoring hazardous areas and work processes. It is ideally suited as a sensor for integrating images in real time into existing on-board computer systems. Thanks to its high optical resolution and options such as overlay insertion, it forms the basis or extension for almost all fields of application. The camera is characterized by its robustness against vibrations, cold, heat and moisture. It has a FullHD image sensor and can be configured via a WebGUI and TCP protocols. With the option of outputting up to five video streams, it offers extensive image settings. The video output is in H.264 or MJPEG format. The “ArkCam Basic+ mini” works reliably in a temperature range of -40°C to +95°C and can withstand mechanical loads of up to 50g. It is suitable for high-pressure cleaners in accordance with IP69K and is available in a model variant with single-pair Ethernet (T1). The power supply is between 9-60V DC and the camera supports protocols such as RTP/RTSP, TCP/UDP, HTTP, REST API and ISO17215. The ArkCam Basic+ mini is developed and manufactured in Germany.

Key facts:
-FullHD-image sensor
-Model variants available for Single-Pair-Ethernet (T1) or Ethernet (TX)
-Protocol RTP/RTSP, TCP/UDP, HTTP, REST API, ISO17215
-Video output format MJPEG or H.264
-Power supply 9-60V DC
-Extended temperature range from -40°C to +95°C
-High mechanical load capacity up to 50g
-High pressure cleaner suitable according to IP69K
