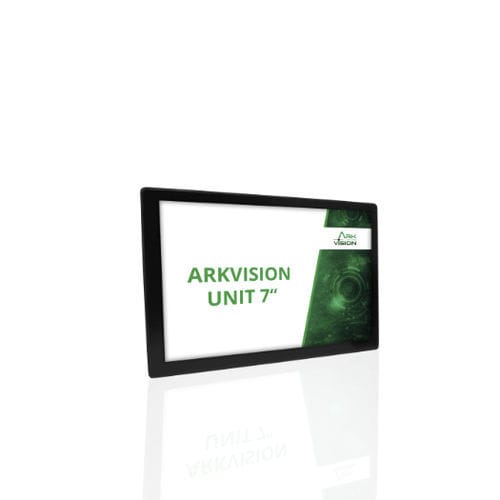

Mobile monitor Unit 7

digitaltouch screencompact

The robust digital 7-inch monitor from the ArkVisionUnit family is our entry-level model for digital display solutions.
Perfectly matched to our ArkCam camera series, it delivers clear, detailed images with a resolution of 800 × 480 pixels, making it the ideal introduction to fully digital live video display. The monitor’s user-friendly design is enhanced by flexible, freely configurable trigger inputs, as well as a wide range of display views and functions. High standards of shock and vibration resistance for mobile applications, combined with an IP65 protection rating, complete our robust 7-inch digital monitor. Developed and manufactured in Germany, the monitor features a screen resolution of 800 × 480 pixels, a typical brightness of 1,200 cd/m², and intuitive touchscreen operation. It is designed to operate within a temperature range of -20°C to +70°C and runs on the Linux operating system. With an IP65 protection rating and interfaces including 3 × GPI and 1 × Ethernet (TX) or Single-Pair Ethernet (T1) with Power Out, it offers versatile connectivity options.
Development, production and design – Made in Germany.

Key Facts:
- Screen resolution 800 × 480 pixels
-Screen brightness 1,200 cd/m²
-Operation via Touch
-Power supply: 9–36 V DC
-Temperature range -20°C to +70°C
-Compact robust design
-IP65 protection rating
