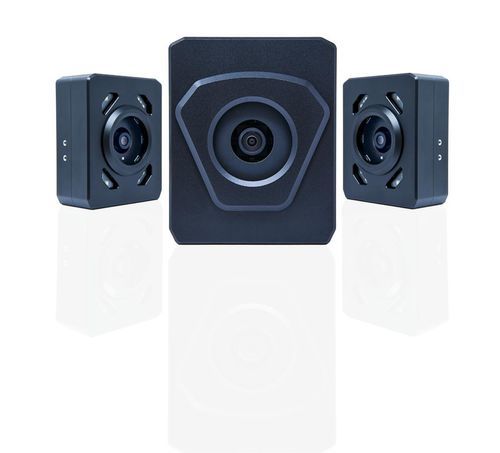

Surveillance camera ArkCam Smart AI

for farm machinery

Our „ArkCam Smart AI“ is the perfect solution for demanding image processing applications. Equipped with the i.MX8M PLUS processor, it offers outstanding AI acceleration. The FullHD image sensor delivers clear images at resultion 1920x1080 at 60fps. The camera supports up to five video streams and offers extensive image settings with H.264 I H.265 and MJPEG formats. It operates reliably in a temperature range from -40°C to +95°C, withstands mechanical loads up to 50g, and is protected against water and dust with an P69K rating.Configuration is done via WebGUI and TCP protocols. Variants for Fast Ethernet (TX) and Power over Ethernet (PoE) are available. Additional features such as integrated lighting (IR or white light), digital I/Os, and CAN-FD enhance its versatility and application possibilities. The camera supports protocols like RTP/RTSP, TCP/UDP, HTTP, REST API, and ISO17215. Power is supplied via 9-36V DC or PoE according to IEEE802.3af-2003. With its open software platform, you can develop and integrate your own applications. The ArkCam Smart AI is the ideal camera for demanding environments and applications. The "ArkCam Smart" is developed and manufactured in Germany.

Key Facts:
-FullHD image sensor (5MP Ready)
-Powerful, embedded processor for image processing tasks with AI acceleration
-Open software platform Suitable for own customer developments by SDK
-Video output format H.264, H.265 or MJPEG
-Model variants available for Single-Pair-Ethernet (T1) or Ethernet (TX)
-Protocol RTP/RTSP, TCP/UDP, HTTP, REST API, ISO17215
-Power supply 9-36V DC or PoE Standard IEEE802.3af-2003
-Extended temperature range from -40°C to +85°C
-High mechanical load capacity up to 50g
-High pressure cleaner suitable according to IP69K
-Optional integrated illumination IR 850nm or white light LED
