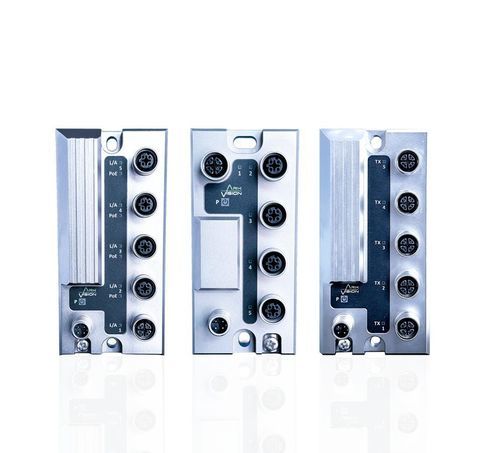

IP67 switch ArkSwitch TX 4+1 PoE

IP65

The Industrial PoE Ethernet Switch is perfectly suited for use in harsh industrial environments outside the control cabinet and for networks in passenger trains, buses, commercial vehicles and agricultural machi-nery. With a supply voltage of 24 VDC, the switch supplies connected end devices on the four D-coded M12 ports with data and power in accordance with the IEEE 802.3at (Type 1) standard with a total power budget of 40 watts. With the X-coded M12 uplink port, sufficient reserves are available for data trans-mission thanks to the high bandwidth. Due to the ex-tended temperature range of -40°C to +70°C, excellent EMC performance (DIN EN 50121-3-2) and fire protection according to DIN EN 45545, the SPARK is suitable for use in trains and comply with DIN EN 50155. By supporting Autonegotiation and Auto MDI-X a quick and easy commissioning is possible. The ArkSwitch is developed and manufactured in Germany.

Key Facts:
-1x Output Ethernet (1000Base-TX)
-4x Input Ethernet (10/100Base-TX PoE)
-Application areas mobile and stationary
-Power supply 14,4-33,3V DC (M12-A coded)
-Extended temperature range from -40°C to +70°C
-Compact robust design
-Protection class according to IP65/67
