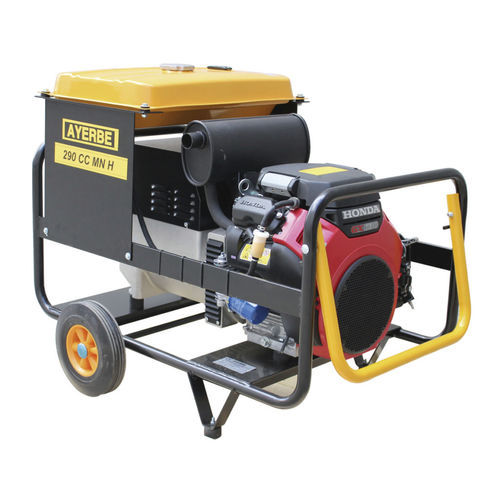

Gasoline generator set 290 H – CC – MNmobile50 Hzair-cooled
Add to favorites
Compare this product
fo_shop_gate_exact_title
Characteristics
- Type
- gasoline
- Portability
- mobile
- Frequency
- 50 Hz
- Cooling system
- air-cooled
- Application
- welding
- Domain
- agricultural
- Power
Max.: 9 kVA
(12.2 hp)8 kVA
(10.9 hp)Min.: 0 kVA
(0 hp)- Voltage
220 V
- Rotational speed
3,000 rpm
(18,850 rad.min-1)- Length
1,050 mm
(41 in)- Width
760 mm
(30 in)- Noise level
99 dB
- Fuel tank capacity
25 l
(6.6 gal)- Height
860 mm
(33.86 in)
Description
Engine: HONDA GX-630 630 cc 21 HP
Alternator: SINCRO ARC 300
Max. power: 9 KVA // 7400 W.
Nom. power: 8 KVA // 6400 W.
Consumption: 3,2 L./H.
Tank fuel: 25 L.
Electrode 5 mm. Rutile Basic (60%)
Intensity 250 A. (35%) // 200 A. (60%)
Tension 230 V. // 50 Hz.
Noise level 99 dB
Weight 150 kg.
Electric start
Dimensions 1050 x 760 x 860 mm.
Welding kit included
