Covering unit horticulture sticking line

automatic

Overview

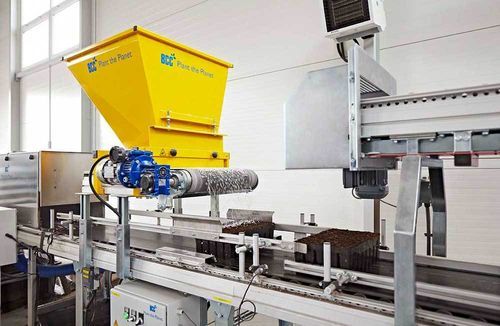

The BCC Tray Covering Unit applies a thin, uniform layer of covering material to trays immediately after sowing. The cover creates a cool, moist micro‑climate that promotes seed germination, protects seeds and young seedlings, and helps prevent excessive algal and moss growth. It is suitable for production lines where consistent germination and seed retention are required.

Function
Fully integrated into the BCC filling and sowing line, the unit deposits a controlled mulch or covering layer on trays. Settings can be adjusted for different tray types and sowing speeds to ensure even distribution and repeatable results across production runs.

Specifications

• Dimensions mm: 950 x 850 x 1750 (depending on height of conveyor belt)
• Weight: 85 kg
• Power requirement: 0.18 kW
• Power supply: 3 x 400 V, 50 Hz
• Maximum production capacity:
  • HIKO: 20 trays/minute
  • Plantek/SideSlit: 13–18 trays/minute
  • Insert Frame: 10 trays/minute

Product leaflets
English, Portuguese and Spanish leaflets are available.

Technical characteristics

• Dimensions mm: 950 x 850 x 1750 (depending on height of conveyor belt)
• Weight: 85 kg
• Power requirement: 0.18 kW
• Power supply: 3 x 400 V, 50 Hz
• Maximum production capacity: HIKO 20 trays/minute; Plantek/SideSlit 13–18 trays/minute; Insert Frame 10 trays/minute
