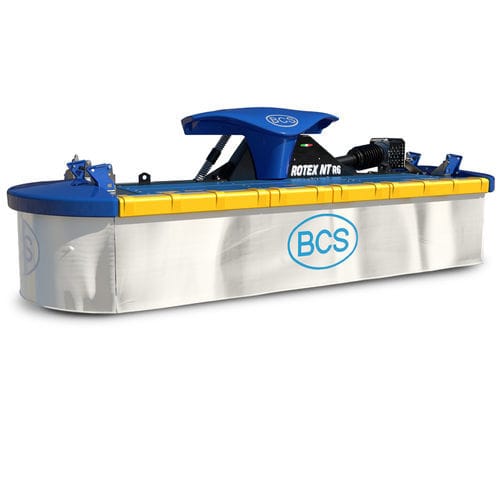

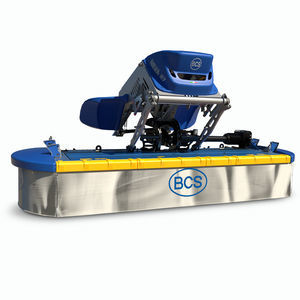

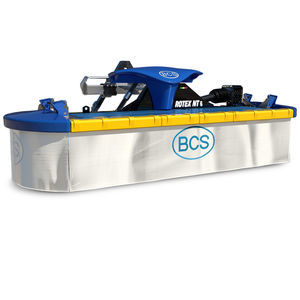

Mounted mower Rotex Avant NT series
front-mountdisc7 discs

mounted mower
mounted mower
mounted mower
mounted mower
mounted mower
mounted mower
mounted mower
Add to favorites
Compare this product


Characteristics

Mounting
mounted, front-mount
Technology
disc
Number of discs
7 discs, 6 discs
Other characteristic
with roller conditioner, folding
Working width

2.45 m, 2.85 m
(8'00" , 9'04" )

Power required

68 ch, 75 ch
(68 hp, 75 hp)

Weight

745 kg, 815 kg
(1,642.4 lb, 1,796.8 lb)

Description

Range of front mower-conditioners intended for intensive farming for mowing and conditioning fodder on any type of soil. The compact dimensions mean that the Rotex Avant NT can also be applied to reversible isodiametric or special mountain tractors, as well as in combination with rear-mounted mowers. Focus The compact design makes the Rotex Avant NT ideal for mowing fodder, even on slopes. Thanks to the roller conditioner, the grass is crushed favouring drying to the advantage of the quality of the fodder and the lower risk of exposure to bad weather. Structure. • Gearbox, with gears in an oil bath: made from spheroidal graphite cast iron to ensure maximum resistance to stress both during work and transfer. • Clutch and free wheel: standard, to protect the transmission. • Bar balancing: by springs. • Different types of tractor hitching frames to make them compatible with all the tractors on the market. • Central articulated joint for bar oscillation of +/- 50 and perfect adaptation to the profile of the soil. A pin makes it possible to lock it during road transfer. • Hydraulic displacement: optional, to improve load distribution when operating on slopes. • Side protections: reclining to reduce the overall size of the machine during travel. DustDeflector Wings. The special bodywork has not only been studied to give the machine an attractive look, but also to allow dust and debris generated during work to flow sideways. Thereby avoiding having to repeatedly stop to clean the radiator grilles or the windscreen if the machine is used on tractors with reversible driving position.

Catalogs
