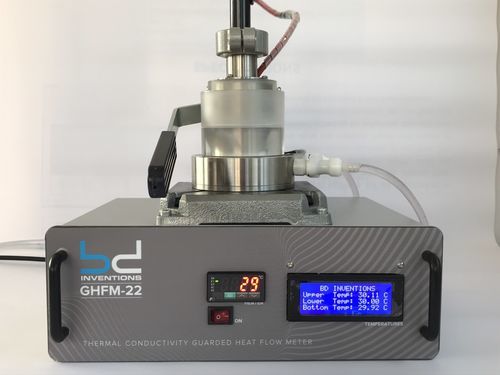

Temperature analyzer GHFM-22

benchtopdigital

Product overview
The Guarded Heat Flow Meter (GHFM-22) conforming to ASTM E1530 measures steady-state axial thermal conductivity of solid samples at ambient temperature. The instrument imposes a controlled axial temperature gradient and determines thermal conductivity from measured temperature differences and heat flux. The GHFM-22 is a benchtop thermal conductivity meter suitable for metals, building materials, insulation, polymers and thin films, designed for fast, repeatable material characterization and laboratory tests.

Applications and Market sectors

• Metals
• Insulation and building materials
• Thin films
• Polymers
• Phase Change Materials (PCM)

Specifications (table)
Standard: ASTM E1530
Materials: Metals, Insulation, Polymers, Thin films
Sample diameter: 50.8 mm
Sample thickness range: 0.5 to 20 mm
Temperature: Ambient (room temperature)
Thermal conductivity range: 0.1–1 W/(m·K) and 1–15 W/(m·K)
Thermal resistance range: 0.0004–0.015 m²·K/W and 0.015–0.2 m²·K/W
Accuracy: 5%
Repeatability: 2%

Technical specifications

• Standard: ASTM E1530
• Applicable materials: Metals, Insulation, Polymers, Thin films
• Sample diameter: 50.8 mm
• Sample thickness range: 0.5–20 mm
• Operating temperature: Ambient (room temperature)
• Thermal conductivity measurement ranges: 0.1–1 W/(m·K) and 1–15 W/(m·K)
• Thermal resistance measurement ranges: 0.0004–0.015 m²·K/W and 0.015–0.2 m²·K/W
• Accuracy: 5%
• Repeatability: 2%
