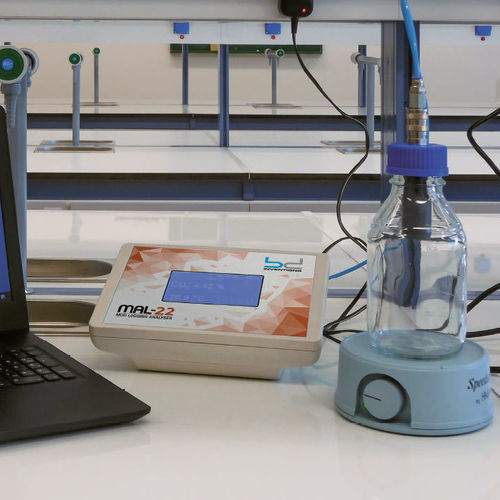

Soil analyzer MAL-22

benchtopwith data loggingdigital

Product overview
The MAL-22 mud logging analyser by BD Inventions is a semi-portable bench-top instrument for fast, automated determination of the calcite/dolomite ratio in soil and sediment samples. Designed for mud logging and geological sampling, it provides carbonate-content data to support lithology interpretation and reservoir evaluation. Conforms with EN ISO 10693:2013, ASTM D4373-02(2007) and ASTM D1756-02(2007).

Standards

• EN ISO 10693:2013
• ASTM D4373-02(2007)
• ASTM D1756-02(2007)
• AFNOR - NF P94-048

Two-step automated procedure

• Step 1: Rapid pressure rise after acid mixing — calcite detection
• Step 2: Slower sustained pressure rise over minutes — dolomite detection

Chemical reactions
1) CaCO3(s) + 2 HCl(l) -> CaCl2(l) + CO2(g) + H2O(l)
2) CaMg(CO3)2(s) + 4 HCl(l) -> CaCl2(l) + MgCl2(l) + 2 CO2(g) + 2 H2O(l)

Key features

• Digital measurement with automatic acquisition
• Semi-portable bench-top design
• High accuracy: 1% (resolution 1%)
• Automatic temperature compensation (built-in sensor 5–50 °C)
• Rapid, repeatable results and automated sequence
• PC-compatible with CarboSoft® MUD-LOGGING software for Windows

Applications and market sectors

• Natural gas and oil exploration
• Exploratory and regular drilling operations
• Mining and sedimentology
• Lithology and geological laboratories

Specifications

• Units: % calcite/dolomite
• Working range: 0–100% calcite/dolomite
• Accuracy: 1%
• Resolution: 1%
• Linearity (r2): 0.999
• Temperature compensation: built-in sensor, 5–50 °C
• Reaction vessel: glass bottle 250 ml
• Sample volume: 0.500–5.000 g
• Analysis time: measurements at 1 min, 6 min, 15 min or continuous (3 points)
• PC software: CarboSoft® MUD-LOGGING for Microsoft Windows 8.x, 10.0
• Measuring modes: Fixed and Expert (continuous)
• Memory: last 50 measurements (no limit with CarboSoft® software, optional)
• Calibration points: 0% and 100% CaCO3
