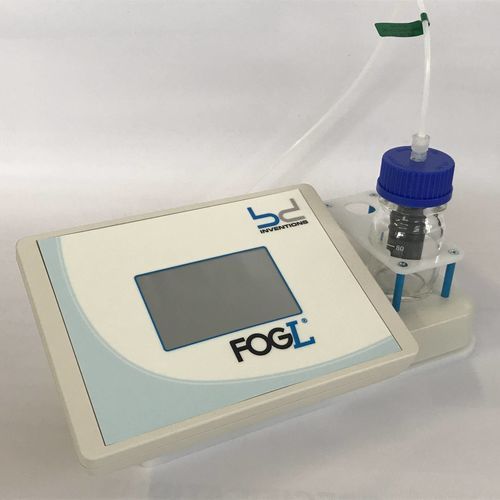

CO2 analyzer FOGL

carbon dioxidebenchtopwith data logging

Product Overview
The FOGL CO2 Analyzer by BD Inventions measures carbon dioxide in cement samples by pressure detection of CO2 released when hydrochloric acid reacts with carbonates. Designed as a bench-top calcimeter, it provides fast total inorganic carbon quantification with high reproducibility and simple operation for quality control and process monitoring in cement production.

Features

• Determination of % lime (expressed as CaCO3)
• Calculation of % CO2 originating from raw material calcination
• Supports sustainability reporting by verifying reduced CO2 content in cement

Advantages

• Results selectable as % CO2 or % CaCO3
• Stable, repeatable measurements on cement matrices
• Low operating cost and maintenance-free design
• CarboSoft® data export for integration into QC systems

User Interface
- 4.3" touch LCD display with backlight.
- Operating panel inclined by 20° for ergonomic use.
- Power supply: 9V DC (110/220V AC, 50/60 Hz).
- Units: % CO2 or CaCO3.
- Working range: full range for typical cement samples.
- Accuracy/Resolution: better than 0.5% / 0.01%.
- Linearity (r2): 0.999.
- Temperature: automatic compensation via built-in sensor, 5 - 50°C.
- Reaction vessel: glass bottle.
- Sample volume: 0.500 - 5000 g.
- Sample analysis time: approx. 30 sec.

Device
- Dimensions (L×W×H): 225×165×104 mm (package 360×260×150 mm).
- Weight: 500 g.
- Material: ABS case (UL 94 HB), colour off-white RAL 9002; membrane: polyester (PET); display: resin coated (scratch proof).
- Compliance: CE mark; RoHS standards.
- Standard delivery: main analyzer including bottle, integrated magnetic stirrer, calibration/verification sample, power supply, operating manual.
- Optional: CarboSoft® desktop software for Microsoft Windows 8.x, 10.0.

Technical specifications

• Detection principle: pressure measurement of CO2 released by HCl reaction with carbonates
• Measured units: % CO2 or CaCO3
• Accuracy/Resolution: better than 0.5% / 0.01%
• Linearity (r2): 0.999
• Temperature compensation: 5 - 50°C (built-in sensor)
• Display: 4.3" touch LCD with backlight
• Power supply: 9V DC (110/220V AC, 50/60 Hz)
• Reaction vessel: glass bottle
• Sample volume range: 0.500 - 5000 g
• Sample analysis time: approx. 30 sec
• Dimensions: 225×165×104 mm (package 360×260×150 mm)
• Weight: 500 g
• Materials: ABS case (UL 94 HB); membrane polyester (PET); resin-coated display
• Compliance: CE, RoHS
• Included: bottle, integrated magnetic stirrer, calibration/verification sample, power supply, operating manual
• Optional software: CarboSoft® for Windows
