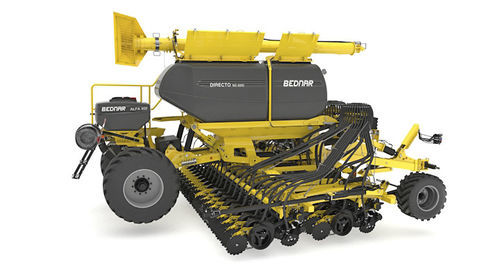

Pneumatic seed drill DIRECTO NO

discfor professional agriculturalfor large crops

Summary
DIRECTO NO is a no-till seed drill designed for direct seeding into stubble, catch crops, tilled or untilled soil. Its DIRECT STAR single-disc seeding coulter ensures reliable seed placement even in heavy residues or very dry conditions. Up to three seed materials can be drilled in one pass; fertiliser placement is possible simultaneously.

Key properties
A versatile seed drill for direct drilling with multiple seeding configurations and optional fertilisation to support flexible crop establishment.

DIRECT STAR seeding coulter
The patented DIRECT STAR single-disc coulter operates effectively in stubble, catch crops and tilled soils. Row spacing is 16.7 cm with 33.4 cm distance between coulters in the same row. High downforce of 300 kg per coulter secures consistent seed placement. Minimum seeding depth is 2 cm.

Fertiliser placement and yield potential
The fertiliser coulter places fertiliser slightly to the side and deeper than the seed, creating a nutrient zone that promotes root development and reduces drought stress. Zoned application supports crop establishment and improves overwintering.

High variability of seeding options

• Seed with fertiliser delivered through the seed coulters (seed & fertiliser) — two seed types possible at 16.7 cm row spacing.
• Seed with fertiliser every second row (seed & fertiliser) — two seed types every second row at 33.4 cm spacing.
• Seed and fertiliser placed separately — seed in seed coulters, fertiliser in dedicated fertiliser coulters.

Closing wheel
Two closing wheel types available — notched or smooth. Robust frame maintains straight tracking. Closing wheel downforce is mechanically adjustable per coulter by a tensioned spring; angular position is adjustable.

ALFA seeder
With the optional ALFA seeder up to three seed types or microgranulate can be applied in a single pass. ALFA 400 has a 400 L hopper. Material can be routed to seeding coulters, fertiliser coulters or mixed 50:50.

Pressurised hopper design
Double-chamber pressurised hopper with 5,000 L total capacity ensures accurate metering regardless of seed or fertiliser granule size.

Filling auger
Optional filling auger simplifies loading the double-chamber hopper and is suitable for filling through the rear dispensing window of a semi-trailer.

Control & calibration
ISOBUS connectivity with BEDNAR EASY CONTROL software enables intuitive operation. FARM LINK mobile app assists calibration and metering roller selection.

Tyres & transport
Large flotation tyres 710/50 R26.5 reduce soil pressure and prevent tracking. Transport width does not exceed 3 m.

Seeding configurations (details)
Tab 1 – Seed and fertiliser placed together in the row; mixing occurs in the delivery pipe. Two seed types can be used; both hopper chambers may contain the same seed. Option to shut off half working width in double distribution head configuration.
Tab 2 – Seed with fertiliser every second row; two seed types can be sown at different depths; no half-width switch-off in this configuration.
Tab 3 – Seed placed by seed coulter; fertiliser placed under and slightly to the side by the fertiliser coulter; seed A and seed B placements are distinct.

Technical data (table)
Working width: 6 m / 8 m
Transport width: 3 m
Transport length: 9.9 m (NO 6000) / 10.8 m (NO 8000)
Transport height: 4 m
Drill coulter spacing: 16.7 cm
Number of drill coulters: 36 (NO 6000) / 48 (NO 8000)
Drill coulter down pressure: 300 kg
Fertilisation disc spacing: 16.7 cm
Number of fertilisation discs: 36 / 48
Drill coulters – diameter: 45 cm
Closing wheels – diameter: 38 cm
Guiding wheels – diameter: 40 cm
Hopper volume: 5,000 L (double-chamber)
Hopper chamber ratio: 60:40
Filling height: 3.2 m
ALFA hopper volume: 400 L
Frame type: folding
Power demand: 200 - 280 hp (NO 6000) / 280 - 360 hp (NO 8000)
Hitch type: crossbar cat. III, IV
Tyre size of support wheels: 15/55–17
Transport tyre dimensions: 710/50 R26.5
Max. total weight: 12,150 kg (NO 6000) / 13,020 kg (NO 8000)

Technical specifications

• Model: DIRECTO NO
• Type: No‑till seed drill for direct drilling
• Working width: 6 m (NO 6000) or 8 m (NO 8000)
• Hopper: Double-chamber pressurised hopper, total 5,000 L (60:40)
• Seeding coulter: DIRECT STAR single disc; row spacing 16.7 cm; coulter distance in row 33.4 cm; downforce 300 kg/coulter; minimum seeding depth 2 cm
• Number of drill coulters: 36 (NO 6000) / 48 (NO 8000)
• Fertiliser placement: Dedicated fertiliser coulters; multiple seeding/fertiliser configurations (including up to 3 materials with ALFA)
• ALFA seeder: ALFA 400 optional, 400 L hopper, material directed to seeding or fertiliser coulters or mixed
• Closing wheels: Smooth or notched; adjustable downforce and angle
• Tyres: Flotation transport tyres 710/50 R26.5; support wheels 15/55–17
• Transport width: 3 m; transport length approx. 9.9 m / 10.8 m; transport height 4 m
• Power demand: 200–280 hp (NO 6000); 280–360 hp (NO 8000)
• Frame: Folding
• Optional equipment: Filling auger, additional weights, ALFA seeder, ISOBUS control integration
