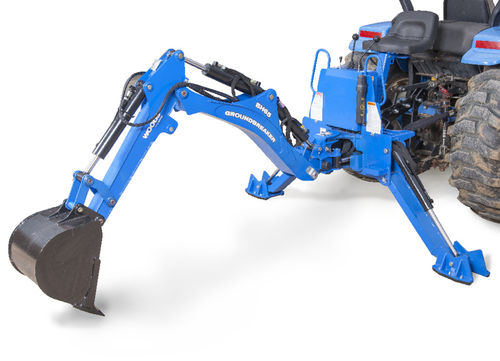

Tractor backhoe BH65

hydraulic

• Curved boom offers better visibility and reaches over obstacles with little repositioning • High digging forces powers through hard, rocky, root-fill ground • Optional mechanical thumb available • Sub-frame or 3-point hitch mounts are compatible with most loaders and undermount mowers • Ultimate operator comfort with high-back seat and walk-through platform • High capacity buckets move more material in less time • Bolt-on bucket teeth are durable and easy to replace SPECIFICATIONS Tractor PTO HP 15-30 Maximum Digging Depth 78 (6.5 ft) Thumb Optional mechanical Digging Depth - 8 ft Flat Bottom (in) 52 Reach from Swing Pivot (in) 102 Loading Height (in) 60 Loading Reach (in) 33.5 Transport Height (in) 66.5 Transport Length (in) 42 Approx. Weight - Frame Only (lbs) 695 Swing Arc (degrees) 150 Bucket Rotation (degrees) 180 Stabilizer Spread - Up (transporting) (in) 52 Stabilizer Spread - Down (operating) (in) 83 Bucket Digging Force (lbs) 2,800 Relief Pressure (psi) 2,030 Dipperstick Digging Force (lbs) 1, 590 Trenching Bucket Widths (in) 9, 12, 16 Flip-Over Stabilizer Pads Standard Stabilizer Street Pads Optional Warranty 2 year limited, including the tractor Woods C® Compact/Subcompact
