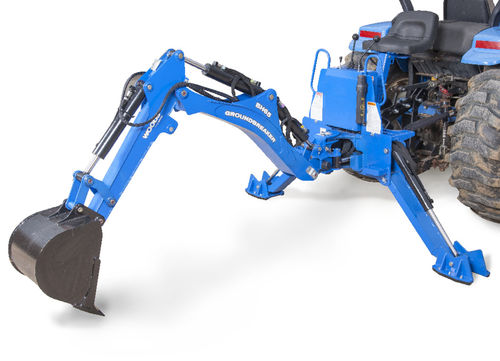

Tractor backhoe BH75
hydraulic

tractor backhoe
tractor backhoe
tractor backhoe
tractor backhoe
tractor backhoe
tractor backhoe
Add to favorites
Compare this product


Characteristics

Utilization
for tractors
Other characteristic
hydraulic

Description

• Curved boom offers better visibility and reaches over obstacles with little repositioning • High digging forces powers through hard, rocky, root-fill ground • Optional mechanical thumb available • Sub-frame or 3-point hitch mounts are compatible with most loaders and undermount mowers • Ultimate operator comfort with high-back seat and walk-through platform • High capacity buckets move more material in less time • Bolt-on bucket teeth are durable and easy to replace SPECIFICATIONS Tractor PTO HP 20-40 Maximum Digging Depth 90 (7.5 ft) Thumb Optional mechanical Digging Depth - 8 ft Flat Bottom (in) 70 Reach from Swing Pivot (in) 119 Loading Height (in) 73 Loading Reach (in) 46 Transport Height (in) 74 Transport Length (in) 45 Approx. Weight - Frame Only (lbs) 842 Swing Arc (degrees) 180 Bucket Rotation (degrees) 180 Stabilizer Spread - Up (transporting) (in) 52 Stabilizer Spread - Down (operating) (in) 83 Relief Pressure (psi) 2,465 Bucket Digging Force (lbs) 3,380 Dipperstick Digging Force (lbs) 2,230 Trenching Bucket Widths (in) 9, 12, 16, 18, 24 Flip-Over Stabilizer Pads Standard Stabilizer Street Pads Optional PTO Pump Kit Optional 2-Cylinder Swing Yes Warranty 2 year limited, including the tractor Woods C® Compact/Subcompact
