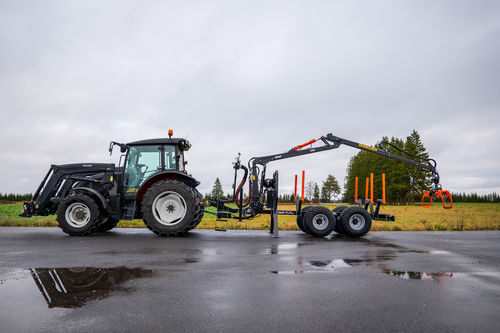

Forestry trailer BMF5T1

5 ton

Overview
This single-beam forestry trailer BMF5T1 is designed for logging and timber transport. It features an A-type support leg and Pro-type bolsters with adjustable and extendable loading bunks to adapt to various load sizes and log lengths.

Configuration options

• Pro bolsters: movable and extendable bolsters; positions adjustable along the trailer beam; toothed edges to secure logs; optional plates can be fitted between PRO bolsters for branch transport or extra protection.
• Drawbar options: robust hydraulic steering drawbar with protected oil pump and hoses housed inside the drawbar; mechanically lockable for road transport; available heights: 80 cm and 50 cm; multiple hitch options including K80.
• Front screen options: standard safety screen protecting tractor and crane area; optional reinforcement bar available.
• Support legs: hydraulically operated A-type support legs attached to the front screen, providing a compact, space-saving setup suitable for narrow trails and working between trees.

Compatible accessories

• Hydraulic pumps
• Oil coolers and reservoirs
• Control platforms
• Front screen supports
• Toolboxes
• Custom paint options
• Chainsaw mounts
• Chassis extensions
• Support stands
• Trailer lighting
• Brakes
• Trailer wheels
• Branch containers

Key advantages

• Protected cylinders: hydraulic cylinders integrated and protected inside the robust support legs.
• Protected oil pump: unique drawbar design hides and protects the oil pump inside the drawbar.
• Improved stability: crane positioned lower to reduce centre of gravity; support legs often mounted directly to trailer frame; wide wheel spacing and balancing beams for better performance on rough terrain.
• Robot-welded construction: high-quality robot welding and strategically located seams for extended service life under heavy loads.
• Strength-analysed frame design: frames engineered according to load distribution and validated by strength analysis for demanding forestry work.
• Strenx® performance steel: optimized strength-to-weight using Strenx® / SSAB-certified materials.
• Controlled in-house manufacturing: BMF produces metal details and many components internally to ensure quality and durability.
• Heavy-duty safety grilles: strong grilles on single- and double-beam trailers for everyday protection in forest conditions.
• Flexible drawbar connection: multiple drawbar eye options and two drawbar heights; drawbar can be mechanically locked for safer road transport.

Compatible machines
BMF430, BMF440, BMF540, BMF650, BMF720, BMF750, BMF850, BMF905, BMF800HD, BMF1000HD, BMF635Z, BMF860Z, BMF870Z

Measurements / Technical specifications
Total length: 4965 mm
Length of loading area: 2900 mm
Total width with standard wheels: 1800 mm
Height with standard wheels: 1790 mm
Loading capacity: 5000 kg
Wheels (standard): 11,5/80-15,3 / 400/60-15,5
Chassis: 120x120x8 mm
Axles: 60x60-6
Loading area: 1.2 - 1.4 m²
Clearance with standard wheels: 550 mm
Extension: 600 mm
Trailer-mounted support leg type: A

Notes
Pro-type bolsters with adjustable and extendable loading bunks adapt to various load sizes and log lengths. Drawbar cylinders and drawbar angle to sides are indicated as not applicable (n/a) in the technical sheet.
