Trailer with telescopic frame BMF2T1

forestry2 tonfor ATV

Overview

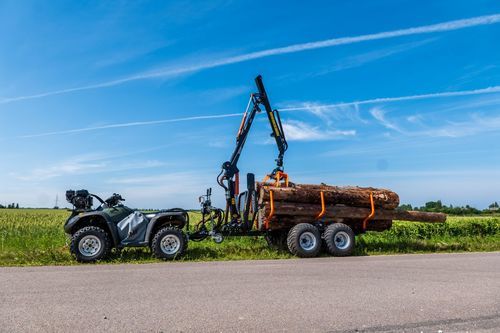

The BMF2T1 forestry trailer is a compact 2-tonne timber trailer engineered for ATVs and tractors. Its hydraulically extendable frame and compact dimensions make it suitable for timber forwarding, log transport and general forestry tasks where manoeuvrability on narrow tracks is required.

Key features

• 2-tonne payload capacity with hydraulically extending frame to adjust the loading area and optimise weight distribution between trailer and towing vehicle.
• Chassis in STRENX® 700 MC with high-strength laser-cut frame and robot-welded joints for consistent structural accuracy.
• 430 mm ground clearance and a wide chassis for stability on rough terrain.
• Compact overall dimensions for excellent manoeuvrability on narrow forest tracks.
• Optional Robson 4WD roller drive available to improve traction in demanding terrain.
• Various towing hitches and optional additional loading bunk to adapt the trailer to different applications.

Compatibility and equipment

• Designed specifically to pair with the BMF440 forestry crane: optimized lifting geometry, long telescopic reach and protected hydraulic routing.
• Compatible with the BMF C10 grapple.
• Can be equipped with accessories such as an integrated winch and LED work light.

Technical specifications

• Loading capacity: 2000 kg
• Total length: 4500 mm
• Length of loading area: 3100 mm
• Total width (standard wheels): 1450 mm
• Height (standard wheels): 1345 mm
• Wheels (standard): 300/65-12
• Chassis: STRENX 700 MC 100x100x3 mm
• Axles: 40x40x5 or 50x50x6
• Loading area: 0,8 m²
• Drawbar cylinders: n/a pcs
• Drawbar angle to sides: n/a ± °
• Clearance (standard wheels): 430 mm
• Trailer-mounted support leg type: FD
• Extension: 1000 mm
