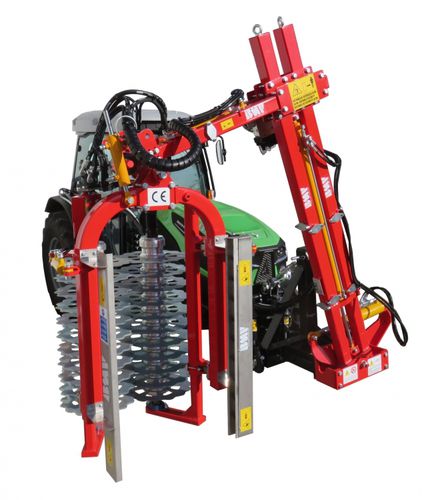

The new B.M.V. dry pruner model "PR3000" allows to contain the production costs and to reduce the labour, nowadays lacking and too expensive.It’s suitable for the pruning of the espaliers “Guyot and spur pruned cordon.The working times are reduced of 50-60%.All the range models are applied in front of the tractor.The power required is supplied by the hydraulic sockets of the tractor or, upon request, a separate hydraulic control unit can be provided.The machine if fed by the hydraulic sockets of the tractor.The 4 hydraulic movements for rise, inclination, crosswise movement, disc opening in proximity of row poles, allow the machine to better adapt to the rows.The two cutting groups can be both made with many discs, according to the required working-height.It starts from a minimum of 400 mm. to a maximum of 800 mm.
OPTIONAL
Sensors for automatic opening next to rows’ poles
80 l. independent
hydraulic tank with pump
Over gear
Oil/air heat exchanger
Internal filter
Control box
combined with electric distributor
Mechanical distributor combined with electric switch
Version “PR3000B - ARCH”
lighter pendulum version, for use in hilly areas.
TECHNICAL FEATURES:
· WORKING CAPACITY = 2,4 (ha/h)
· FEED RATE = 2-2,5 Km/h
· WEIGHT PR3000L = 320-350 Kg
· WEIGHT PR3000B = 350-380 Kg
· OIL FLOW RATE = 20 Lt/min
· DISCS Ø400
· NUMBER OF DISCS PER GROUP VARIABLE, ACCORDING TO THE HEIGHT OF WORK
REQUIRED
