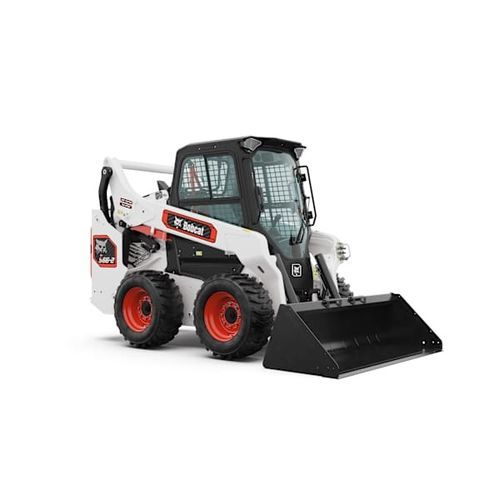

Compact skid-steer loader S66-2

with cab

Overview
The S66-2 skid-steer loader advances the R-Series with improved durability, simplified routine checks and enhanced operator interfaces. Key updates include a redesigned electrical harness, factory-installed frame seals and a relocated hydraulic sight gauge. The cab integrates an 8-inch touchscreen, customizable operator profiles and four selectable drive modes to adapt performance to tasks and operator preference.

Key features

• Redesigned electrical system with blue-wrapped wiring harnesses and sealed fuse boxes
• Factory-installed frame seals to limit debris ingress
• Relocated hydraulic sight gauge for easier level checks
• 8-inch color touchscreen compatible with gloves; multi-camera views
• Custom operator profiles (up to 20) and password protection for fleet management
• Four drive modes: Balanced, Agile, Dynamic, Charged
• Selectable Joystick Controls (SJC) and optional remote-control capability
• Two-speed travel option and optional automatic anti-rollback/ride control
• HVO fuel compatibility (depending on configuration)
• Bob‑Tach® quick-change attachment system

Performance

• Tipping load: 2268 kg
• Engine power: 55 kW
• Operating weight: 3262 kg
• Rated operating capacity: 1134 kg

Operator & controls

• 8-inch touchscreen with split-screen monitoring and Bluetooth audio
• Low-effort joysticks with fingertip switches (SJC)
• Customizable drive and hydraulic response profiles
• Optional heated air-ride seat and improved sound/vibration damping

Maintenance & reliability

• Protected routing and blue-wrapped harnesses for reduced wear
• Panoramic service access to filters, fill points and battery
• Protected battery location with remote start/charging terminal
• Accessible grease points and sealed components to minimize downtime

Attachments & versatility

• Standard Bob‑Tach® coupler; wide range of compatible attachments (buckets, augers, sweepers, grapples)
• Integrated seven-pin harness for accessory controls
• Options for vertical or radial lift kinematics and dual-direction bucket self-level

Technical specifications

• Model: S66-2
• Series: R-Series
• Tipping load: 2268 kg
• Engine power: 55 kW
• Operating weight: 3262 kg
• Rated operating capacity: 1134 kg
• Display: 8-inch color touchscreen
• Drive modes: Balanced, Agile, Dynamic, Charged
• Electrical: redesigned harnesses (blue-wrapped), sealed fuse boxes
• Frame: factory-installed seals
• Hydraulics: relocated sight gauge; hydraulically damped cylinders
• Attachments: Bob‑Tach®; 7-pin harness
• Fuel compatibility: HVO (depending on configuration)
