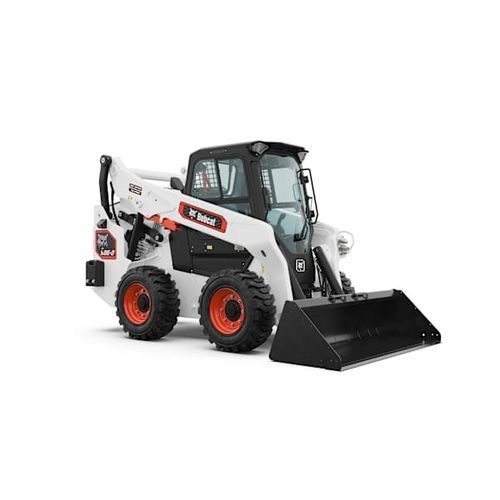

Compact skid-steer loader S86-2

with cab

Overview
The large-frame S86-2 skid-steer loader delivers increased lift height and engine output for demanding loading and material-handling tasks. It combines a 3.7 m (12 ft) lift reach, a 115 HP (85.8 kW) powertrain, and design refinements that preserve breakout force and rated operating capacity while easing loading of high-sided trucks. An 8-inch touchscreen with integrated camera views and four selectable drive modes improves control and situational awareness.

Key selling points

• Large-frame skid-steer optimized for heavier applications
• 12-foot (≈3.7 m) lift height for loading high-sided vehicles
• Increased engine output: 115 HP (85.8 kW)
• 8-inch glove-friendly touchscreen with multi-camera integration and infotainment features
• Four selectable drive modes (Balanced, Agile, Dynamic, Charged) to match task and operator preference

Performance

• Cast-steel lift-arm sections and optimized linkage for higher lift without sacrificing breakout force
• Two lift-path options (vertical and radius) to suit reach and application requirements
• Improved cooling and durable frame to maximize uptime in demanding conditions

Hydraulics & Auxiliary Flow

• Optional Super Flow hydraulic package for auxiliary flow up to 159 L/min (High Flow)
• Auxiliary system pressure increased up to 28.3 MPa with high-flow configurations
• Five-coupler block and 3/4-inch couplers for high-flow attachments; 1/2-inch quick couplers for standard tools

Controls & Operator Experience

• Bobcat Standard Controls (lever/foot-pedal) with improved tactile feedback
• Selectable Joystick Controls (SJC) option; compatible with portable remote control operation
• Customizable operator profiles: save up to 20 profiles with language/layout preferences and password protection
• Automatic ride control to reduce material spillage and improve ride comfort
• Two-speed travel option to increase top travel speed and reduce transit times
• High-resolution touchscreen, Bluetooth audio, hands-free calling and active noise reduction in cab

Comfort & Visibility

• Refined cab interior with improved storage, phone holder and USB/USB-C ports
• Sound-dampening measures to reduce cab noise
• Clear-side enclosure (optional polycarbonate side windows) for improved side visibility
• Spacious cab with increased headroom and removable swing-open door
• Optional heated air-ride seat with operator-controlled heat and suspension

Serviceability & Uptime

• Panoramic service access: engine checks, fills, filters and battery reachable without raising lift arms
• Protected battery location under cab with remote jump-start terminal in engine compartment
• Hydraulic oil sight gauge located inside the fill door for protected, easy checks
• Grease point placement for quick greasing of critical pivots
• Redesigned electrical layout with wrapped wiring harness and sealed fuse boxes for improved reliability
• Debris sealing and factory-installed frame seals to protect components

Environmental & Fuel

• HVO-ready configuration: compatible with hydrotreated vegetable oil biofuel as a cleaner alternative to conventional diesel

Attachment Versatility

• Standard Bob-Tach® mounting system for fast attachment changes; Power Bob-Tach® option enables some attachments to be connected/removed from the cab
• Attachment control kit and seven-pin harness available for multi-function attachments
• Wide range of supported attachments, including high-flow approved implements when equipped with Super Flow

Technical specifications

• Model: S86-2
• Tipping load / Rated Operating Capacity (ROC): 3175 kg; ROC listed: 1587 kg
• Engine power: 85.8 kW (approx. 115 HP)
• Operating weight: 4497 kg
• Lift height: ≈3.7 m (12 ft)
• Auxiliary high-flow (Super Flow): up to 159 L/min
• Auxiliary pressure (Super Flow high-pressure capability): up to 28.3 MPa
• Super Flow / Five-coupler block available for high-flow attachments
• 8-inch color touchscreen with integrated camera views
• Selectable Joystick Controls (SJC) and remote-control capability (optional)
• Four selectable drive modes: Balanced, Agile, Dynamic, Charged
• HVO fuel compatibility (HVO-ready)
