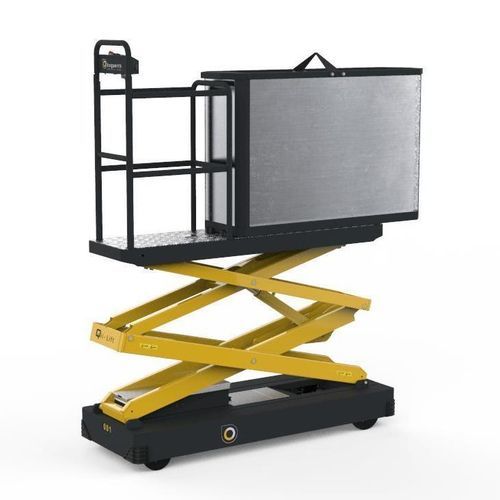

Greenhouse harvest trolley Qii-Lift C

self-propelledadjustable-height

Overview
Designed for commercial growers, the Qii-Lift C harvest trolley handles bottom-unloading containers at height to simplify crop collection and transfer. It is intended for use in greenhouse and protected-crop operations and combines simple manual handling with compatibility for mechanical hoisting systems.

Design and operation
The Qii-Lift C is a redesigned version of the Qii-Lift adapted for bottom-unloading containers. It features a reinforced scissor lift and a container platform and operates together with an external hoisting system to unload containers positioned above concrete service paths. Workers place harvested crop into the container, move the trolley beneath the hoisting point, attach the container via its hoist hook, and activate the hoisting system. A single pull on the container handle opens the bottom plates and empties the load in one action.

Key features

• Used in combination with an external hoisting system
• Bottom-unloading container with 0.66 m³ capacity
• Reinforced scissor for carrying capacity up to 350 kg
• Control panel identical to Qii-Lift H for familiar operation

Technical specifications

• Model: Qii-Lift C
• Intended use: harvest trolley for bottom-unloading containers in greenhouse operations
• Container capacity: 0.66 m³
• Maximum carrying capacity: up to 350 kg
• Maximum working/harvesting height: 3.5 m
• Design: reinforced scissor lift and container platform
• Container features: hoist hook for connection to hoisting system; bottom plates opened by single-handle pull for rapid emptying
• Control: identical control panel as Qii-Lift H
• Operation: works in combination with an external hoisting system positioned above the concrete path for unloading
