Robotic spray robot TAH-343 High

for strawberry cropelectric

Product overview

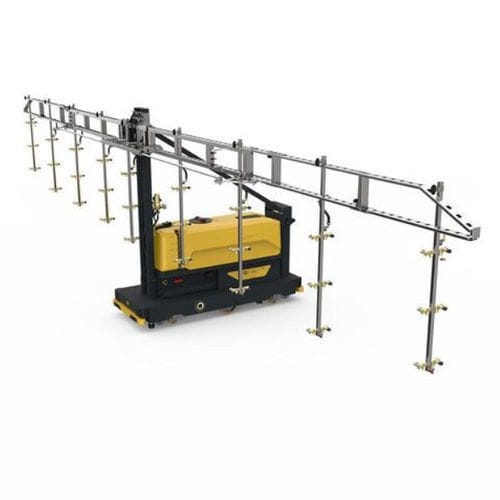

The Qii-Jet TAH-343 High is an automatic strawberry spraying robot designed for crops on supported gutters. It combines a horizontal spray boom frame with downward-facing vertical spray booms to treat multiple rows simultaneously. The spray booms fold and unfold without tools or locking pins, simplifying setup and passage in tunnels or greenhouses.

Control and operation
The unit is operated via a separate touchscreen, allowing quick creation and optimization of spray programs (path length, spray pattern, liters/ha). An integrated liter counter enables accurate dosing and mixing. The Qii-Jet is powered by an AC motor extending autonomy up to 12 hours and reducing maintenance. A 3-way valve facilitates tank emptying or service mode; electronics are front-accessible. A cabinet switch permits operation without pressure measurement for applications such as a spray gun.

Features

• Tank 300l
• Automatic speed and pressure calculation to achieve target liters/hectare
• Separate touchscreen for easy parameter input
• Standard horizontal spray boom frame
  • Width 5100 mm
  • Manually foldable
  • Different horizontal extension lengths available
• Multiple program storage
• Transit speed on pipe rails when not spraying: 110 m/min
• Automatic full or partial path spraying per program settings
• Dedicated manual-spray selection button
• Full-traction batteries 24V – 400Ah
• Transmission suitable for concrete path and pipe rails
• Self-centering swiveling wheels
• Built-in injector agitator nozzle for tank mixing
• Frequency-driven pump unit
• Up to 12 hours autonomy
• Anti-corrosion treatment

Technical specifications

• Tank capacity: 300 l
• Horizontal spray boom frame width (standard): 5100 mm
• Horizontal boom: manually foldable; different extension lengths available
• Control: separate touchscreen for program and parameter input
• Calculation: automatic speed and pressure calculation for target liters/hectare
• Operation modes: automatic full/partial path spraying; manual spraying via separate button
• Speed (transit on rails, not spraying): 110 m/min
• Powertrain: transmission suitable for concrete path and pipe rails
• Batteries: full-traction 24V – 400Ah
• Pump: frequency driven pump unit
• Tank mixing: built-in injector agitator nozzle
• Autonomy: up to 12 hours (with AC motor)
• Service features: 3-way valve for emptying/switch to service mode; front-located electronics for easy access; switch to allow operation without pressure measurement
• Protection: anti-corrosion treatment
