Straight irrigation fitting Quick-Joint®

threadedpolypropylenefemale

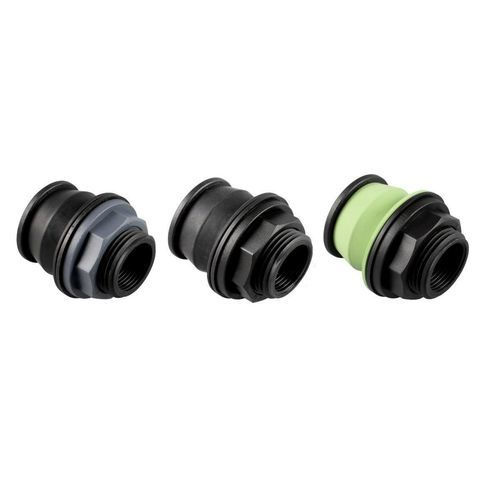

Quick-Joint® quick-installation bulkhead is a black polypropylene bulkhead fitting featuring one flat end and one end with an external male G1 thread combined with an internal female G thread. The assembly includes a flat gasket, a rigid flat ring and a clamping collar designed for quick and secure installation.

Components and options

• Body material: black polypropylene
• Ends: one flat end; one end with external male G1 thread and internal female G thread
• Flat gasket available in: EPDM (/E), NBR (/N) or Viton (/F)
• Rigid flat ring: black polypropylene
• Clamping collar: black polypropylene

Variants (dimensions per code)

• 0402820.050302/E — G1: 1/2 in; G: 3/8 in; E: 29; E1: 38; H: 49; L2: 5; K: 28
• 0402820.050302/F — G1: 1/2 in; G: 3/8 in; E: 29; E1: 37; H: 49; L2: 5; K: 28
• 0402820.050302/N — G1: 1/2 in; G: 3/8 in; E: 29; E1: 37; H: 49; L2: 5; K: 28

Usage / Product line

• Line 4000 — Outdoor & Gardening

Technical specifications

• Brand: QUICK JOINT®
• Commercial name: QUICK JOINT® - QUICK INSTALLATION MF BULKHEAD
• Product line / Category: Line 4000 - Outdoor & Gardening
• Body material: black polypropylene
• Gasket type: one flat gasket (materials mapped by code)
• Gasket material options: /E = EPDM, /N = NBR, /F = Viton
• Additional parts material: rigid flat ring and clamping collar in black polypropylene
• Thread configuration: external male G1 + internal female G thread
• Dimensional details: see the "Variants (dimensions per code)" list above for E, E1, H, L2, K values per product code
