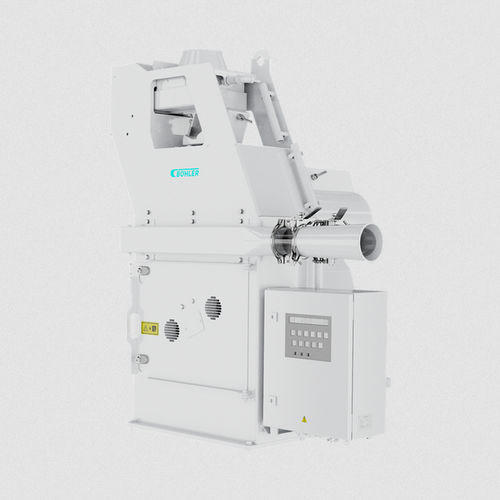

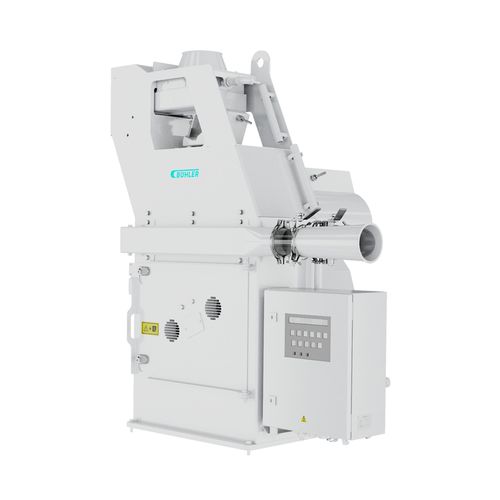

Rice dehuller SuperHusk

automatic

Overview
The SuperHusk is a rubber-roller huller designed for modern rice mills. Its timed automatic switchover between fast and slow rollers, combined with sensor-based gap measurement and dual VFD drives, ensures consistent linear speed difference and controlled inter-roller pressure for efficient hulling and reduced breakage.

Key benefits

• Optimised hulling yield with minimized brokens — precise roller-diameter measurement detects abrasion and enables automatic gap and speed readjustment.
• Lower rubber consumption — timed automatic fast/slow roller switchover and abrasion compensation can reduce rubber wear by up to 40%.
• Energy-efficient operation — dual interconnected VFD-controlled motors allow regeneration of braking energy, returning approx. 10% to the energy circuit.

What does SuperHusk offer?
The SuperHusk delivers stable hulling performance at high throughput: consistent speed differential and adjustable inter-roller pressure provide gentle yet effective husk removal for a low percentage of broken kernels. Its compact footprint and reliability make it suitable for integration into modern rice-mill process lines.

Key features at a glance

• Timed automatic switchover of fast and slow rubber rollers to maintain a stable speed difference.
• Sensor-based roller-diameter/gap measurement for high-precision monitoring and automatic adjustment.
• Dual VFD-controlled motors with power regeneration for energy savings.
• Reduction of rubber consumption (up to 40%) through automatic switchover and abrasion compensation.

Efficient aspiration system
The surrounding-air aspiration cools rubber rollers and vacuums the hulling area. A closed-air-circuit husk separator prevents dust escape and separates husk from brown rice precisely to protect product quality and the working environment.

Function / Operation
Paddy is fed via inlet → buffer unit → vibrating feeder (adjustable frequency) and guided by a long shedding plate to the rubber-roller hulling zone. Inter-roller pressure and feed rate are adjustable to adapt to rice varieties and milling targets.

Integration
Compatible with the hygienic TopHusk hull separator for effective husk removal and consistent brown-rice quality with low brokens; designed for seamless integration in modern milling lines.

Technical specifications

• Product type: Rubber-roller huller.
• Model name: SuperHusk.
• Automatic timed switchover between fast and slow rollers.
• Maintains stable linear speed difference and inter-roller pressure.
• Sensor-based roller-diameter/gap measurement with automatic adjustment on abrasion detection.
• Reduces rubber consumption by up to 40% (timed switchover and abrasion compensation).
• Dual drive: two interconnected VFD-controlled motors; slower roller acts as brake enabling power regeneration.
• Energy savings: regenerated energy returned to the energy circuit (approx. 10% savings).
• Surrounding-air aspiration for roller cooling and hulling-area vacuum.
• Husk separator operating in closed air circuit for precise husk/brown-rice separation and dust prevention.
• Feeding: inlet → buffer unit → vibrating feeder (adjustable) → long shedding plate to hulling zone.
• Designed for high-capacity operation and compatibility with modern rice-mill process chains.
• Manufacturer product reference: CUBE-00023-888.
