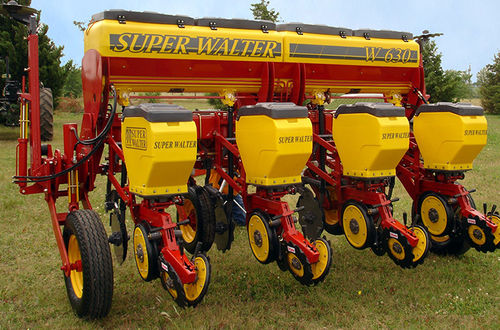

Disc precision seed drill W630
3-point hitchno-till

disc precision seed drill
disc precision seed drill
disc precision seed drill
disc precision seed drill
disc precision seed drill
disc precision seed drill
disc precision seed drill
Add to favorites
Compare this product


Characteristics

Type
disc
Other characteristics
3-point hitch, no-till

Description

NEW SEED DOSAGE SYSTEM. MAINTENANCE FREE! Our new system gives the seed a delicate and gentle treatment with less possibility of grain breakage. Maintenance free. Without lubrication. Built as a 90 degree gearbox, and helicoidal gears, it´s new design with sealed bearings and high temperature treated materials assure a long life service free of maintenance. FERTILIZATION Plastic hoppers with greater capacity per seeding line (126 liters). The seed feed cups are the Chevron type and have a special cleaning Access lid. It´s capable of fertilizing in the seeding lines, between these or both options at the same time. This is achieved accurately thanks to two 36 speed gearboxes, or a variation system. HYDRAULIC SYSTEM The W630 planter is equipped with a simple hydraulic system that can be controlled from the tractor, this system actuates on the hydraulic markers and the sequence valve. SEED METERING Seeding density is obtained through two 32 speed gearboxes, which are in oil bath, assuring a long life service, protected with a safety fuse. These gearboxes allow you to select the exact seed dosage as desired. PLANTING AND FERTILIZING UNITS To deliver the fertilizer in the seeding line, in the first toolbar there´s a no-till 16”disc, available as turbo coulter blade, working as an opener disc. This has a spring fuse as safety feature. Fertilizer drops independently of the seed. The fertilizer is placed in font and below the seed. Following is the planting unit, equipped with 16” double opener discs each one mounted on roller tap bearings with retainers these characteristics fulfill the requirements of a long life service with less maintenance.
