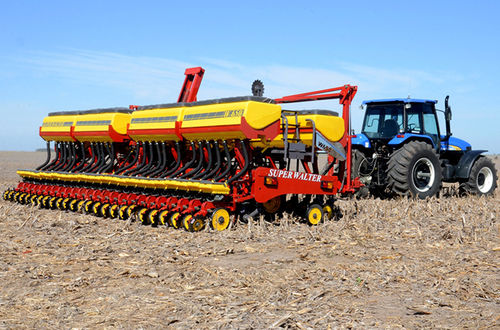

Disc precision seed drill W650 AUTO

toweddepth controlno-till

The transition from the transport position to the working position is carried out from the tractor´s cab very quickly, allowing great flexibility when changing from one field to the other, and giving a higher yield to our working hours. Heavy duty plastic hoppers allow both inline and between line fertilization options. These have an internal division that can be set to either divide internally the Hopper or use it as only one with greater capacity. The Chevron type feed cups have a special lid for cleaning and maintenance purposes. Delivery of fertilizer between lines is accomplished by a double disc in “v” position, the system has a depth control Wheel, which controls depth of the fertilizer and the exact distance where fertilizer will be placed from the seed. Planting and fertilizing units. In the first toolbar, there is an opener disc with a depth control Wheel, this one opens the furrow and deposits the fertilizer through a tube. In the second toolbar, there are 16” turbo coulter blades with a fuse system; these open the furrow for no-till seeding. Following the planting unit: with two 16” double opener discs, mounted on roller tap bearings, these heavy duty bearing satisfy the toughest working conditions in the field assuring long life service with minimum maintenance. The planting unit is equipped with two depth control wheels, allowing planting the seeds at the exact desired depth, a seed press wheel guarantees seed-to-soil contact and posterior emergence. The covering task is carried out by two dented rubber wheels, with variable angle and pressure.
