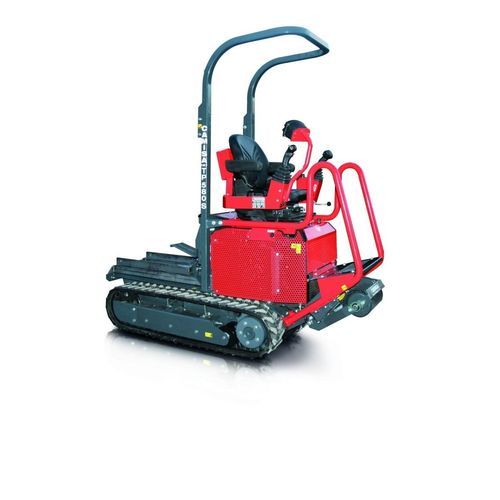

Crawler minidumper TP 580

dieselelectricfor viticulture

Engine - Honda GX 630 2 cylinders (Hp 20,8 / Kw 15,5) gasoline Perkins 403.07 diesel 3 cylinders (Hp 18,5 / Kw 13,6) water cooled Perkins 403.11 diesel 3 cylinders (Hp 25 / Kw 18,5) water cooled Kubota V 1505 diesel 4 cylinders (Hp 35,5 / Kw 26,5) water cooled Perkins 404.22 diesel 4 cylinders (Hp 50 / Kw 37,3) water cooled Start - electric Dashboard - with display engine speed and warning service Transmission - hydrostatic with piston pump Hydraulic motors - wheel motors Poclain Brakes - negative Controls - joystick for speed-and corse control, with servo-control Frame - with slides and quick connections for accessories Seat - with safety belt Safety roll bar - APPROVED Guide roller - n. 6 in cast iron with unthreading pins assembled on bearings Tracks - rubber Spring tensioner - for the tracks Heat exchanger - with electro fan (Honda engine) combined water-hydraulic oil (Perkins/Kubota engines) 1 hydraulic connection - with gear pump from 0 to 40 lt/min with flow regulator 10 hydraulic connections - double or simple effect from 18 lt/min Overall dimensions - mm. 1970x680/900x2170 Weight - Kg. 500/800 Capacity - Kg. 600 Speed - from 0 to 7 Km/h by gradual change Treated on all metallic parts - powder painting Optionals Long undercarriage with 8 rollers Suspension seat Dumper loading platform, with double effect cylinder hydraulic tipping Front roller with electro-hydraulic control Hoist for Pto Butt irroration barrow with hose reel and pump Guide roller with hydraulic tilting Pto 540 rev/min for engines Perkins 403.11, 404.22 and Kubota V 1505 Reverse-drive system Atomizer Steel tracks
