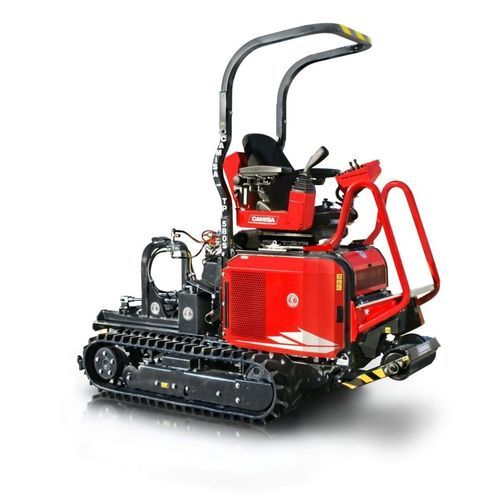

Crawler minidumper TP 680/50

dieselfor viticulturewith seat

Engine - Perkins 404.22 diesel 4 cylinders (Hp 50 / Kw 37,3) water cooled Start - electric Dashboard - with revolution-counter, hour-counter, km-counter and service lights Transmission - hydrostatic with piston pump Hydraulic motors - wheel motors Poclain Brakes - negative Controls - joystick with servo control and electronic speed control Drive seat - reversible and tip-up drive seat Reverser - automatic drive inverter P.t.o - 540 rev/min with bath-oil reducer and electro-magnetic control Frame - with slides and quick connections for accessories Seat - springy drive seat with safety belts Safety roll bar - APPROVED Working lights - and 12 Volt tap Guide roller - n. 10 of which 4 pivoting, in cast iron mounted on bearings with protection caps; unthreaded pins Tracks - rubber Spring tensioner - and grease piston for the tracks Heat exchanger - combined water-hydraulic oil 11 hydraulic connections - double effect, one of them is floating with electro-hydraulic control and joystick 1 hydraulic connection - simple floating with electro-hydraulic control and joystick 1 hydraulic connection - with piston pump, from 0 to 45 lt/min Overall dimensions - mm. 2360x930x2150 mm. 2360x820x2150 (narrow version) Weight - Kg. 1400 Traglast - Kg. 1000 Speed - from 0 to 7 Km/h by gradual change Treated on all metallic parts - powder painting Optionals Front roller with electro-hydraulic control Guide roller with hydraulic tilting Three points lift with hydraulic third connection
