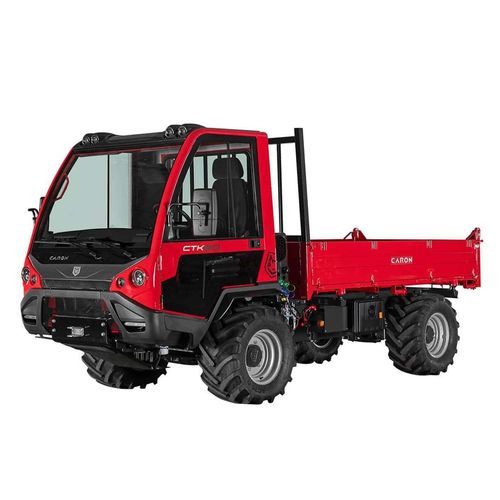

2-person utility vehicle CTK SERIES

diesel4x4with dump bed

Series CTK has been developed for those operators needing a high-performance vehicle, but with compact size. It has the same mechanical components of the “older sister” CT, but the dimensions are reduced (170 wide) in order to favour the manoeuvrability in narrow spaces. With Common Rail Turbo engine of 75 hp, has a total approved weight of 7,500 kg, with a loading capacity of 5,000 kg and a towing capacity up to 10,000 kg. Available in different versions and fittings, wheelbases from 2600 to 3000 mm. ITALIAN VERSION Italian Version with three-way hydraulic dumping box and rear 540 rpm standard pto, with electro-hydraulic control. The Italian Version is available in three different wheelbases and platform sizes: wheelbase 2600 mm with dumping box 2900x1720x400 mm or wheelbase 2800 or 3000 mm with dumping box 3160x1720x400 mm. SERIES CTK AUSTRIAN - SWISS VERSION Austrian-Swiss version, with chassis with quick connections for equipments and central pto with independent hydraulic clutch and electro-hydraulic control (540-1000 rpm). Possible wheelbases: 2600 mm, 2800 mm and 3000 mm. Also the dumping box with chassis, tipping plant and supporting feet is available for this version.
